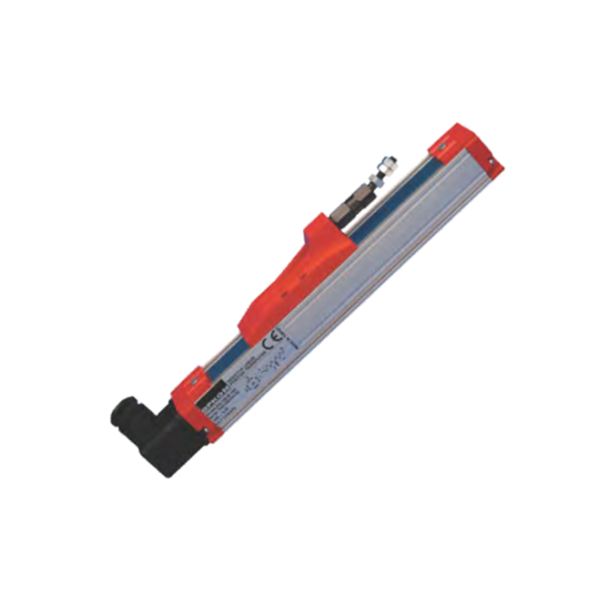

Sliding rod potentiometer 600 mm square body
SKU: LPH600-10K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A high-precision linear position transducer made for precise linear displacement measurement is the Opkon Sliding Rod Potentiometer LPH600-10K.
Because of its sturdy square body design, this type can be used in a variety of industrial settings where dependability and longevity are crucial.
Based on the idea of a voltage divider, the potentiometer produces an output that is proportionate to the wiper's position.
It provides outstanding resilience to mechanical wear and tear and is perfect for use in settings with significant temperature fluctuations.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: LPH600-10K.
Stroke Length: 600 mm.
Resistance: 10K ohms.
Body Dimensions: 33 mm x 33 mm (Square Body).
Power Supply Voltage Range: 5-48 V DC.
Temperature Range: -40°C to +85°C.
Output Type: Proportional voltage output.
Material: Conductive plastic technology.
Accuracy: High accuracy with special laser trimming.
Mechanical Life: Long mechanical life due to robust construction.
Applications: Suitable for various industrial machinery and environments with extreme temperatures.
