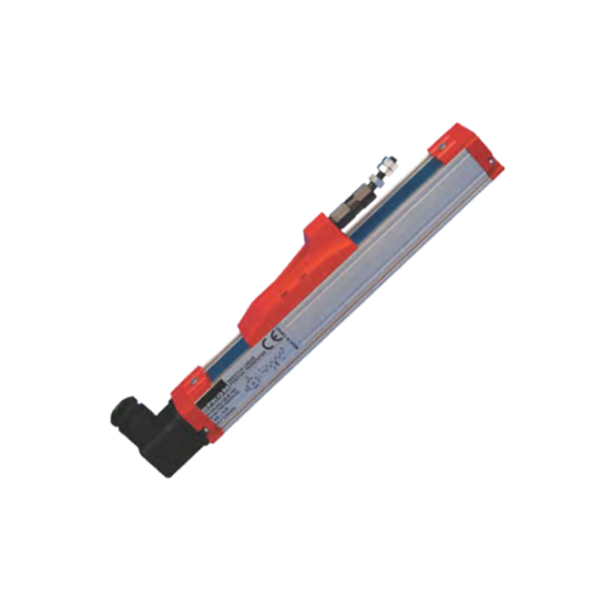

Sliding rod potentiometer 750 mm square body
SKU: LPH750-10K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A high-precision linear potentiometer made for industrial applications needing precise position feedback is the Opkon LPH-750-D-10K-C1.
This model is appropriate for settings where dependability and longevity are crucial because of its sturdy aluminium chassis and square shape.
With a 750 mm stroke length and a 10K ohm output resistance, the potentiometer ensures accurate linearity and repeatability in tests.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: LPH-750-D-10K-C1.
Stroke Length: 750 mm.
Output Resistance: 10K ohms.
Linearity: ±0.05%.
Power Supply: Max. 28VDC.
Housing Material: Aluminium.
Housing Dimensions: 33 mm x 33 mm.
Rod Diameter: M5.
Temperature Range: -20°C to +80°C.
Protection Rating: IP40.
