Sliding rod potentiometer 800 mm square body
SKU: LPH800-10K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

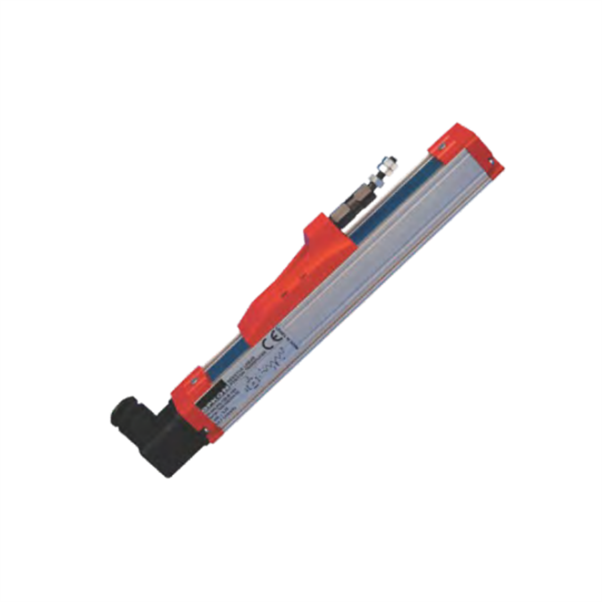

A sliding rod potentiometer made specifically for accurate linear position measurement is the Opkon LPH800-10K.
Because of its sturdy square body design, it can be used in a variety of industrial settings where precise and trustworthy position feedback is crucial.
Based on the idea of a voltage divider, this potentiometer produces an output that is proportionate to the wiper's position.
Even in challenging conditions, its conductive plastic technology guarantees excellent accuracy and longevity.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: LPH800-10K.
Measurement Stroke: 800 mm.
Body Dimensions: 33 mm x 33 mm square body.
Resistance: 10K ohms.
Power Supply Voltage Range: 5-48 V DC.
Temperature Range: -40°C to +85°C.
Output: Proportional voltage output.
Accuracy: High accuracy with low temperature drift.
Construction: Conductive plastic technology.
Mechanical Life: Long mechanical life due to robust construction.
Applications: Suitable for various industrial machinery and equipment.
