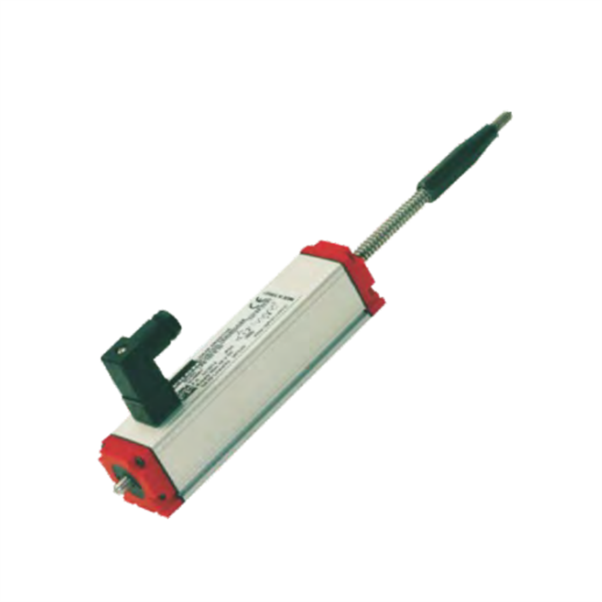

Spring Loaded Potentiometer 150 mm stroke and 10K resistance
SKU: LPS150-10K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A spring-loaded linear potentiometer, the Opkon LPS150-10K is intended for industrial applications requiring accurate position measurement.
With a resistance of 10 k Ohm and a stroke length of 150 mm, this type is perfect for applications that demand precise and consistent measurements.
Because of its spring return mechanism, the potentiometer operates consistently and reliably.
Because to its sturdy design and premium materials, it may be used in challenging conditions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: LPS150-10K.
Measurement Stroke: 150 mm.
Resistance: 10 k Ohm.
Linearity: ±0.2% for strokes 75-150 mm.
Repeatability: <0.01 mm.
Resolution: Infinite.
Load Resistance: 100 k Ohm minimum.
Recommended Wiper Current: <1 μA.
Permissible Applied Voltage: 28 V DC max.
Displacement Speed: <5 m/s.
Mechanical Life: 100 million movements.
Case Dimensions: Ø18 mm.
Case Material: Anodized aluminium.
Rod Material: Stainless steel.
Rod Diameter: Ø5 mm.
Mechanical Fixing: Variable brackets.
Protection Level: IP65 (EN 60529).
Operating Temperature: -20°C to +80°C.
Storage Temperature: -30°C to +90°C.
Electrical Connections: Connector or 1 m cable output.
