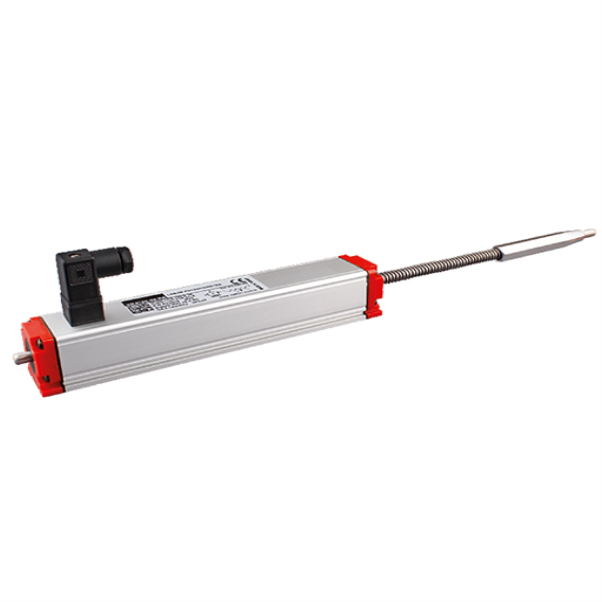

Spring Loaded Potentiometer 50 mm stroke and 5K resistance
SKU: LPS50-5K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A spring-loaded linear potentiometer, the Opkon LPS50-5K is made to measure positions precisely in confined areas.
Because of its spring return mechanism and small housing, this model is perfect for applications requiring precise, repeatable measurements in spaces with limited space.
In a variety of industrial settings, the potentiometer ensures great accuracy and dependability by providing a proportionate output in relation to the wiper's position.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: LPS50-5K.
Measurement Stroke: 50 mm.
Resistance: 5 k Ohm.
Linearity: ±0.5% for strokes less than 75 mm.
Repeatability: <0.01 mm.
Resolution: Infinite.
Load Resistance: 100 k Ohm minimum.
Recommended Wiper Current: <1 μA.
Permissible Applied Voltage: 28 V DC max.
Displacement Speed: <5 m/s.
Mechanical Life: 100 million movements.
Case Dimensions: Ø18 mm.
Case Material: Anodized aluminium.
Rod Material: Stainless steel.
Rod Diameter: Ø5 mm.
Mechanical Fixing: Variable brackets.
Protection Level: IP65 (EN 60529).
Operating Temperature: -20°C to +80°C.
Storage Temperature: -30°C to +90°C.
Electrical Connections: Connector or 1 m cable output.
