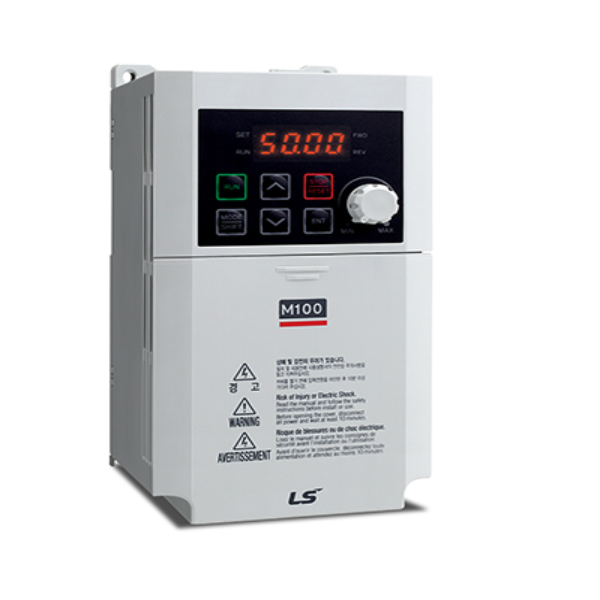

M100 Micro Drive 0.1kW 1-Phase 220VAC (Advanced I/O) RS-485 Comms Pot Din-Rail Mount C2
SKU: LV0001M100-1EOFNA
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
230V/1-phase inverter drive for small three-phase motors, ranging in power from 100W to 2.2KW.
Ideal for small fans, pumps, and geared motors, they come with basic DC injection brakes and built-in motor overload protection.
UL 61800-5-1 Design; Enhanced Isolation Circuit; Easy Connection with RJ45 Port (Modbus, Smart Copier, Remote Keypad, Drive View 7); Integrated C2 EMC Filter User-Friendly Design; DIN-rail mountable; Side-by-side installation; Integrated DB Unit: ≥1.5kW; Advanced I/O Type Modbus
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
200W/1.4A; Heavy Duty-150% Overload/1 min
Voltage input: 1 Phase 200 - 240V
Voltage output: 3 Phase 200 - 240 V
Rated Output Current: 4.2 A
Output Frequency: 0 – 400 Hz
Operating temperature: -10 °C to +50 °
LED Keypad
DIN-rail
Protection class: IP20
Dimensions: 85 x 145 x 100 mm [W x H x D]
Built-in EMC filter (C2 Class)
Advanced I/O - control terminal I/O 5mm pitch.
5 DIGITAL INPUTS
2 ANALOGUE INPUTS (V/I)
2 RELAY OUTPUTS
RS485 -MODBUS
