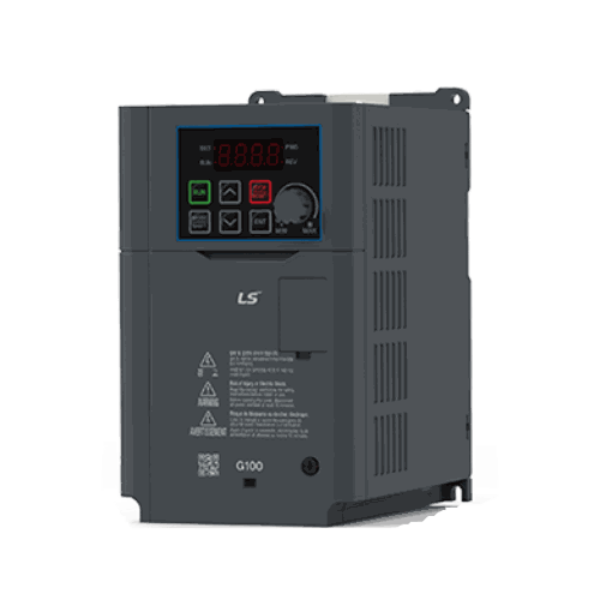

G100 General Drive 0.4kW 3 Ph 380V Heavy Duty Built-in C3 EMC filter LED Keypad
SKU: LV0004G100-4EOFN
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The LS Electrical G100/G100C General AC Drive series provides strong and dependable motor control solutions and is intended for high-performance industrial applications.
These drives have power ratings ranging from 0.4kW to 22kW (equal to 1/2 to 30HP), and they handle three-phase input voltages of 200-240V and 380-480V.
The G100C model offers improved performance and user-friendly features, while the G100 series boasts sensor-less vector control, which offers accurate and effective motor management.
Both models meet UL 61800-5-1 requirements and are constructed with a MIL217Plus-based design for enhanced dependability and durability.
With options for DIN rail mounting and Modbus connection for a smooth integration into current systems, the drives also provide simple installation and maintenance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Inverter output voltage: 3 x 400V AC
Voltage between phases (for 3 phase system): 3 x 380...480V AC
Voltage output: 0...12V DC
Mounting: DIN rail mounting or wall mounting
Number of inputs: 5
Number of analog inputs: 1
Operating temperature: -10…50°C
Output frequency: 0…400Hz.
Current rating: 1.5A
Dual rating: 0.4kW/1.3A Heavy Duty-150% Overload/1 min 0.75kW/2.0A Normal Duty-120% Overload/1 min
3 Phase Input 3 Phase Output
380-480 Volts
Control modes: U/f slip compensation sensor less vector IM.
Output frequency: 0.1 - 400 Hz - U/f 0-120 Hz - IM Sensor less.
LED Keypad
Built-in EMC filter(C3)- Industrial
BRAKE CHOPER BUILD IN
PNP / NPN logic
Standard IO - control terminal I/O 5mm pitch
Dual motor parameters KEB function
PID controller
RS 485 interface-LS Bus / Modbus RTU
Drive View Software.
The G100 inverter supports both PNP (Source) and NPN (Sink) modes for sequence
Inputs at the terminal
Built-in Potentiometer
Remote Keypad
Smart Copier
Fieldbus Options
Built-in 2 Relay
DIN rail Mount (Below 4kW)
Fan Replacement
I/O Terminal (5mm)
Operation Group
