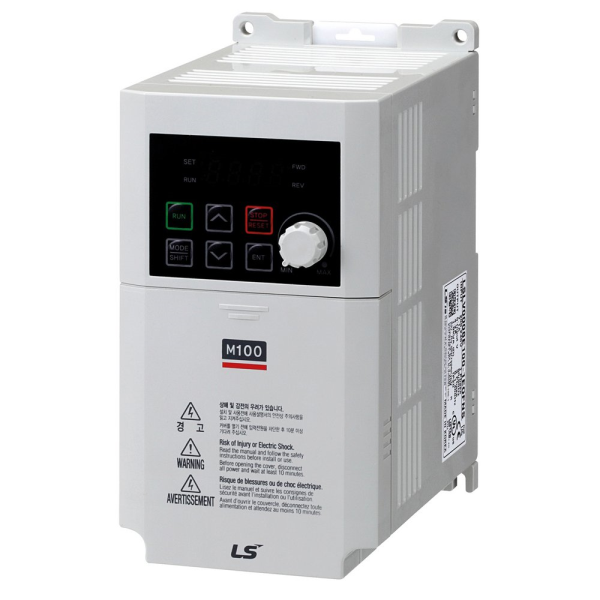

M100 Micro Drive 1.5kW Single phase 220VAC (Standard I/O) C2 EMC Filter Din-Rail Mount
SKU: LV0015M100-1EOFNS
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
230V/1-phase inverter drive for small three-phase motors, ranging in power from 100W to 2.2KW.
Ideal for small fans, pumps, and geared motors, they come with basic DC injection brakes and built-in motor overload protection.
UL 61800-5-1 Design; Enhanced Isolation Circuit; Easy Connection with RJ45 Port (Modbus, Smart Copier, Remote Keypad, Drive View 7); Integrated C2 EMC Filter User-Friendly Design; DIN-rail mountable; Side-by-side installation; Integrated DB Unit: ≥1.5kW; Advanced I/O Type Modbus
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
1.5KW/7.5A; Heavy Duty-150% Overload/1 min
Voltage input: 1 Phase Input 200 - 240V
Voltage output: 3 Phase 200 - 240 V
Rated Output Current: 7.5 A
Output Frequency: 0 – 400 Hz
Operating temperature: -10 °C to +50 °
LED Keypad
DIN-rail
Protection class: IP20
Dimensions: 100 x 190 x 140 mm [W x H x D]
Built-in EMC filter (C2 Class)
Standard IO - control terminal I/O 5mm pitch
