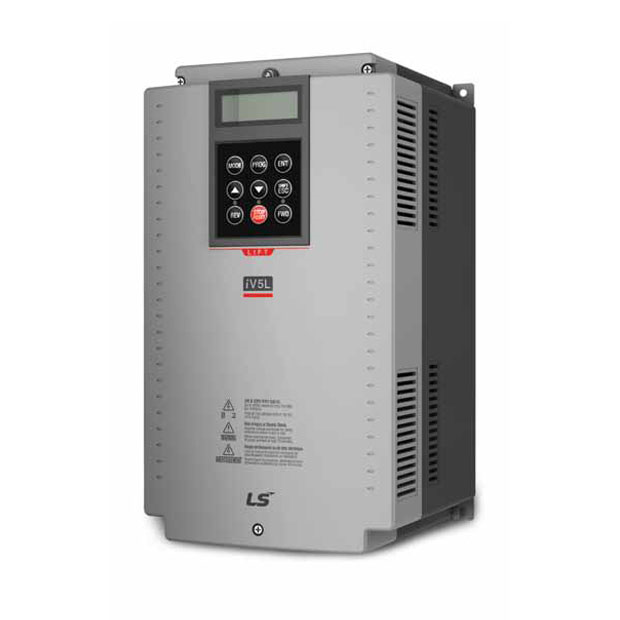

5.5kW AC380-460V 3 Phase built-in Dynamic braking transistor
SKU: LV0055iV5L-4CNNN
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
iV5L Series:
Integrated software for both IM and PM control.
Safe Torque Off (STO) is built in.
Auto Torque Boost: Secured performance with open loop control.
Anti-rollback: When the lift brake opens, this prevents rollback by starting torque compensation via encoder position control.
The ALLS (Automatic Light Load Search) function enables the lift to operate in a safe direction while putting less load on the battery during an emergency.
Options for encoders: SIN/COS encoder Endat feedback options are available. Default incremental encoder.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Power: 5.5 kW.
Voltage Input: 3 phase 380 - 480V AC (-15% to +10%) 50 - 60 Hz (±5%).
Voltage Output: 3 phase 380 - 480V.
Rated Output Current: 12A.
Overload capacity: 150% / 1 minute.
Output Frequency: 0 – 400 Hz.
Operating temperature: -10 °C to +40 °.
LCD Keypad.
IP20.
Dimensions: 200 x 355 x 202 mm [W x H x D].
Weight: 7.7kg.
BRAKE CHOPPER.
HIGH PERFORMANCE VECTOR CONTROL - close loop vector.
