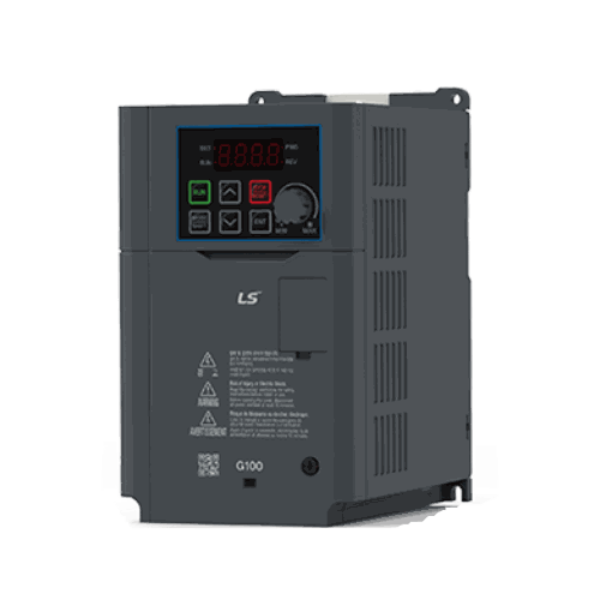

G100 General Drive 7.5kW 3 Ph 380V Heavy Duty Built-in LED Keypad pot. brake chopper RS-485
SKU: LV0075G100-4EONN
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The LS Electrical G100/G100C General AC Drive series provides strong and dependable motor control solutions and is intended for high-performance industrial applications.
These drives have power ratings ranging from 0.4kW to 22kW (equal to 1/2 to 30HP), and they handle three-phase input voltages of 200-240V and 380-480V.
The G100C model offers improved performance and user-friendly features, while the G100 series boasts sensor-less vector control, which offers accurate and effective motor management.
Both models meet UL 61800-5-1 requirements and are constructed with a MIL217Plus-based design for enhanced dependability and durability.
With options for DIN rail mounting and Modbus connection for a smooth integration into current systems, the drives also provide simple installation and maintenance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
The G100 inverter supports both PNP (Source) and NPN (Sink) modes for sequence
Inputs at the terminal
Built-in Potentiometer
Remote Keypad
Smart Copier
Fieldbus Options
Built-in 2 Relay
DIN rail Mount (Below 4kW)
Fan Replacement
I/O Terminal (5mm)
Operation Group
General Drive - 7.5kW 3 Ph 380-480V AC
Built-in RS-485
Simple PLC function
STO
Multi I/O
Brake Unit
Overall Outside Dimensions: 180(w) x 220(h) x 144(d) mm
Categories: G100 - Standard Type, No EMC Filter, (Built to UL 61800-5-1 Standard)
G100 Heavy Duty, Din Mountable 0.4 ~ 22 kW, Potentiometer, LED Keypad, No EMC
