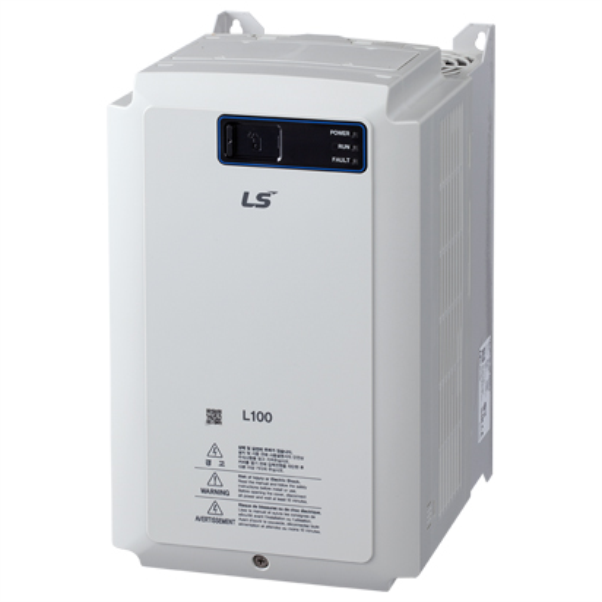

7.5kW 3-Ph 380VAC High Spec. Elevator Drive IM/PM Motors. Encoder Options.
SKU: LV0075L100-4NNFN
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For lifting applications, the L100 series LS frequency inverter is the best option.
Best-in-class performance is provided by the LS Electric L100 series, which is optimized for load lifting and elevators.
The L100 offers vital features and options with size-optimized solutions for these applications, significantly increasing customer value.
Using a 3D design method and heat dissipation analysis, size was decreased in addition to improving performance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Power: 7.5 kW 400V.
Voltage Input: 3 phase 380 - 480V ac (-15% to +10%) 50 - 60 Hz (±5%).
Voltage Output: 3 phase 380 - 480V.
Rated Output Current: 16 A.
Heavy Duty: 150% / 1min. 200% / 4 sec.
Output frequency: 0-120 Hz.
V/F 0-120 Hz .
Slip compensation 0-120 Hz - Sensor Vector (IM. PM).
Built-in CAN open RS 485.
Safety: EN ISO 13849-1 PLd EN 61508 SIL2 (EN60204-1 Cat 0).
Built-in EMC Filter C2 (Class B).
Degree of protection: IP00.
Dimension: (W) 160 x (H) 232 x (D) 180.
Operating temperature: -10 °C to +50 °C.
