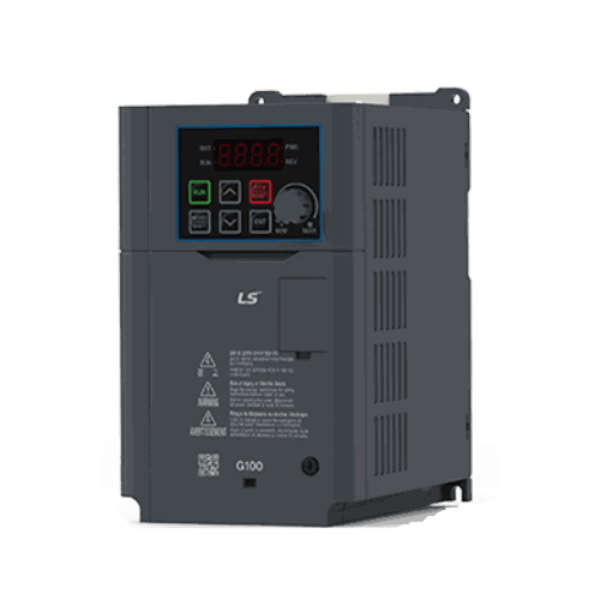

G100 Generak Drive 11kW, 3 Ph 380V, Heavy Duty, Built-in LED Keypad, pot., brake chopper, RS-485
SKU: LV0110G100-4EONN
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The LS Electrical G100/G100C General AC Drive series provides strong and dependable motor control solutions and is intended for high-performance industrial applications.
These drives have power ratings ranging from 0.4kW to 22kW (equal to 1/2 to 30HP), and they handle three-phase input voltages of 200-240V and 380-480V.
The G100C model offers improved performance and user-friendly features, while the G100 series boasts sensor-less vector control, which offers accurate and effective motor management.
Both models meet UL 61800-5-1 requirements and are constructed with a MIL217Plus-based design for enhanced dependability and durability.
With options for DIN rail mounting and Modbus connection for a smooth integration into current systems, the drives also provide simple installation and maintenance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Current: G100
Input voltage: 3 phases 400V.
Rated output current: Load capacity 24A; light load 31A
Output frequency: 0~400Hz (IM sensor less: 0~120Hz)
Output voltage: 3-Phase 380~480V.
Input voltage: 3-Phase 380~480VAC (-15%~+10%)
Rated input current: Heavy load 27.2A; Light load 35.5A
Input frequency: 50~60Hz (±5%)
Control method: V/F, slip compensation, sensor less vector.
Operating mode: Select keyboard, terminal strip or communication operation.
Cooling system: Fan forced cooling.
Environment temperature: -10-50℃
Protection level: IP20
General Drive - 11kW 3 Ph 380V
Heavy Duty
Built-in EMC filter
LED Keypad
Brake chopper.
Overall Outside Dimensions: 180(w) x 290(h) x 173(d) mm
G100 Series
The G100 inverter supports both PNP (Source) and NPN (Sink) modes for sequence.
Inputs at the terminal
Built-in Potentiometer
Remote Keypad
Smart Copier
Fieldbus Options
Built-in 2 Relay
DIN rail Mount (Below 4kW)
Fan Replacement
I/O Terminal (5mm)
Operation Group
