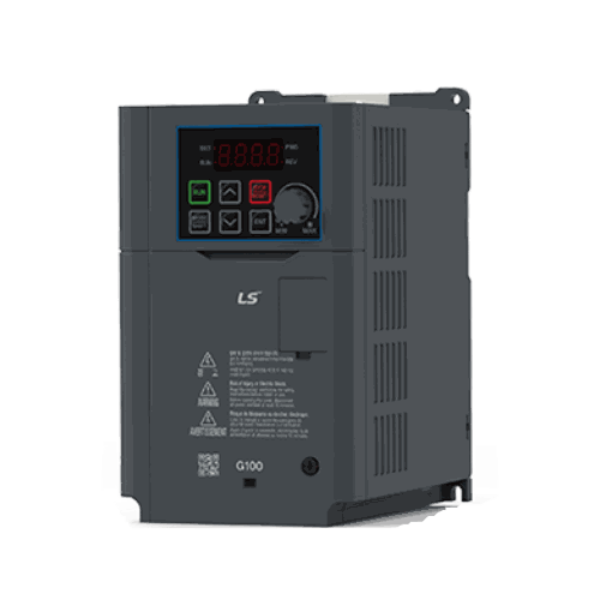

G100 General Drive 15kW 3 Ph 380V Heavy Duty Built-in LED Keypad pot. brake chopper RS-485
SKU: LV0150G100-4EONN
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The LS Electrical G100/G100C General AC Drive series provides strong and dependable motor control solutions and is intended for high-performance industrial applications.
These drives have power ratings ranging from 0.4kW to 22kW (equal to 1/2 to 30HP), and they handle three-phase input voltages of 200-240V and 380-480V.
The G100C model offers improved performance and user-friendly features, while the G100 series boasts sensor-less vector control, which offers accurate and effective motor management.
Both models meet UL 61800-5-1 requirements and are constructed with a MIL217Plus-based design for enhanced dependability and durability.
With options for DIN rail mounting and Modbus connection for a smooth integration into current systems, the drives also provide simple installation and maintenance.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Control method: V/F, slip compensation, sensor less vector.
UL type: Open
Overload capacity: 150% 1 minute.
Operating modes: Keypad select, terminal strip or communication activities.
Protection level: IP20
Cooling: Forced fan cooling.
Compact size, rugged, easy-to-use interface
Sensor less vector control with highly adaptive V/F mode
PC connection, external display and remote control, multi-language support
Easy to install and operate, replace, repair and maintain.
Specifications:
Input voltage: 3 Phase 380-480VAC.
Output voltage: 3 Phase 380-480VAC.
Wattage: 15Kw
Input current: 35.3A, 43.3A
Output current: 31A, 38A.
Output frequency Max: 400Hz.
Digital input: 5
Analog Input: 2
Relay output: 2.
Control method/ Control mode: V/f Control, Sensor less vector control, Slip compensation.
