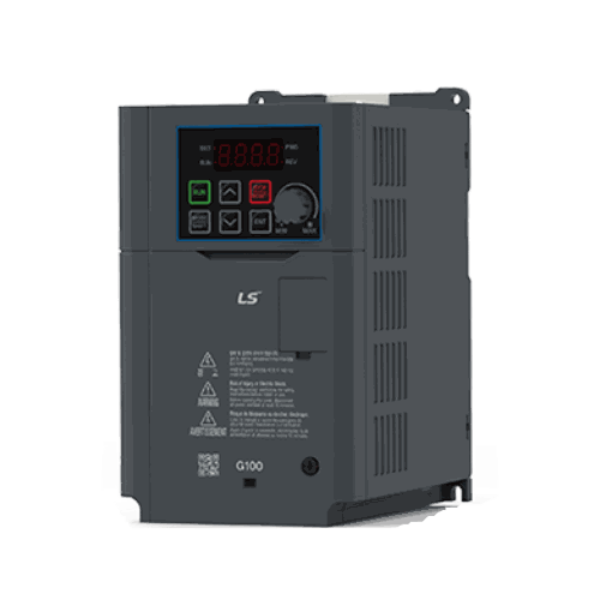

G100 General Drive 22kW 3 Ph 380V Heavy Duty Built-in C3 filter LED K-Pad pot. brake chopper RS-485
SKU: LV0220G100-4EOFN
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Outstanding Dependability
Through improved design, materials, and manufacturing, G100 is made to satisfy international standards while enhancing its resilience in challenging settings.
Excellent Performance
One of the most versatile drives available is the G100, which boasts a highly adjustable V/F mode and sophisticated sensor-less vector control.
Easy-to-use Design: With a variety of capabilities, the G100 is a convenient installation, control, and maintenance device.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Dual rating: 22kW/45A Heavy Duty-150% Overload/1 min 30kW/61A Normal Duty-120% Overload/1 min
3 Phase Input 3 Phase Output
380-480 Volts
Control modes: U/f Slip compensation Sensor less vector IM.
Output frequency: 0.1 - 400 Hz - U/f 0-120 Hz - IM Sensor less.
LED Keypad
Built-in EMC filter(C3)- Industrial
BRAKE CHOPER BUILD IN
PNP / NPN logic
Standard IO - control terminal I/O 5mm pitch
Dual motor parameters KEB function
PID controller
RS 485 interface-LS Bus / Modbus RTU
Drive View Software
Output Power Rating: 22 kW.
Input Power Rating: 3-Phase, 400 V AC, 50/60 Hz
Output current, normal load/heavy load: 61A/45A.
Output voltage: 3 x 400 V AC
Control method: V/F, Slip Compensation, Sensor less Vector.
Built-in potentiometer and EMC C3 filter
User-friendly design: DIN rail installation side by side,
UL 61800-5-1 (compliant with the latest standards)
Built-in: Modbus RTU and LS INV 485
Dimensions: 220 x 345 x 187 mm (W x H x D)
Weight: 7,98 kg
