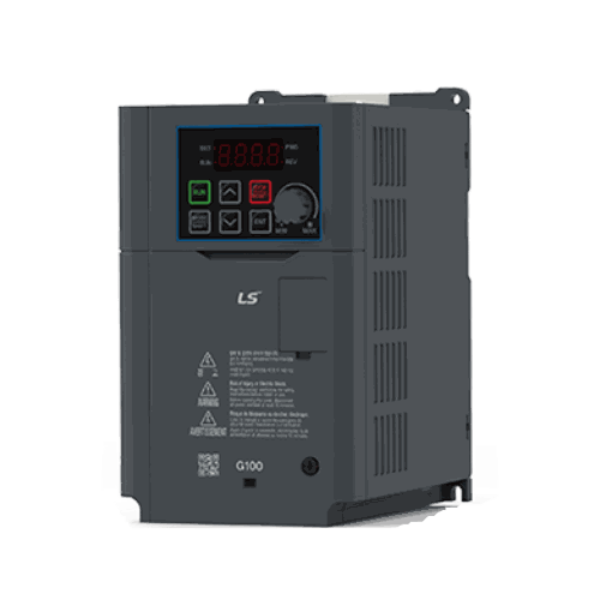

G100 General Drive 22kW 3 Ph 380V Heavy Duty Built-in LED Keypad pot. brake chopper RS-485
SKU: LV0220G100-4EONN
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The LS Electrical G100/G100C General AC Drive series provides strong and dependable motor control solutions and is intended for high-performance industrial applications.
These drives have power ratings ranging from 0.4kW to 22kW (equal to 1/2 to 30HP), and they handle three-phase input voltages of 200-240V and 380-480V.
The G100C model offers improved performance and user-friendly features, while the G100 series boasts sensor-less vector control, which offers accurate and effective motor management.
Both models meet UL 61800-5-1 requirements and are constructed with a MIL217Plus-based design for enhanced dependability and durability.
With options for DIN rail mounting and Modbus connection for a smooth integration into current systems, the drives also provide simple installation and maintenance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
General Drive - 22kW 3 Ph 380V
Heavy Duty
Built-in EMC filter
LED Keypad
Brake chopper.
Overall Outside Dimensions: 220(w) x 345(h) x 187(d) mm
Categories: G100 - Standard Type, No EMC Filter, (Built to UL 61800-5-1 Standard)
G100 Heavy Duty, Din Mountable 0.4 ~ 22 kW, Potentiometer, LED Keypad, No EMC.
PNP (source) and NPN (sink) modes are supported by the G100 inverter for sequencing.
Inputs to the terminal.
The potentiometer is built in.
Keypad for remote access.
Intelligent Copier.
Fieldbus Options.
QR Code.
There are two built-in relays.
DIN rail mounting (below 4 kW).
Fan replacement.
I/O Terminal (5 mm).
Group Operation.
