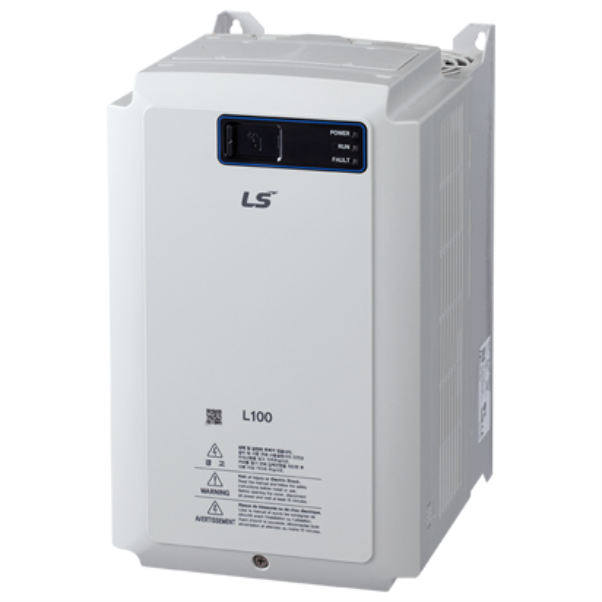

22kW 3-Ph 380VAC High Spec. Elevator Drive IM/PM Motors. Encoder Options
SKU: LV0220L100-4NNFN
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For lifting applications, the L100 series LS frequency inverter is the best option.
Best-in-class performance is provided by the LS Electric L100 series, which is optimized for load lifting and elevators.
The L100 offers vital features and options with size-optimized solutions for these applications, significantly increasing customer value.
Using a 3D design method and heat dissipation analysis, size was decreased in addition to improving performance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Capacity: 22 kW.
Current: 45 A.
Main power supply: 380-480 V.
Heavy Duty: 150% / 1min. 200% / 4 sec.
3 Phase Input 3 Phase Output 380 ~ 480V (-15% ~ +10%).
Output frequency: 0-120 Hz.
V/F 0-120 Hz.
Slip compensation 0-120 Hz.
Sensor Vector (IM. PM).
Analog input: 2.
Analog output: 2.
Operation temperature: -10°С to +40°С.
Built-in CAN open, RS 485.
Safety: EN ISO 13849-1 PLd. EN 61508 SIL2 (EN60204-1 Cat 0).
Built-in EMC Filter C2 (Class B).
Degree of protection: IP00.
Dimension: (W) 220 x (H) 350 x (D).
