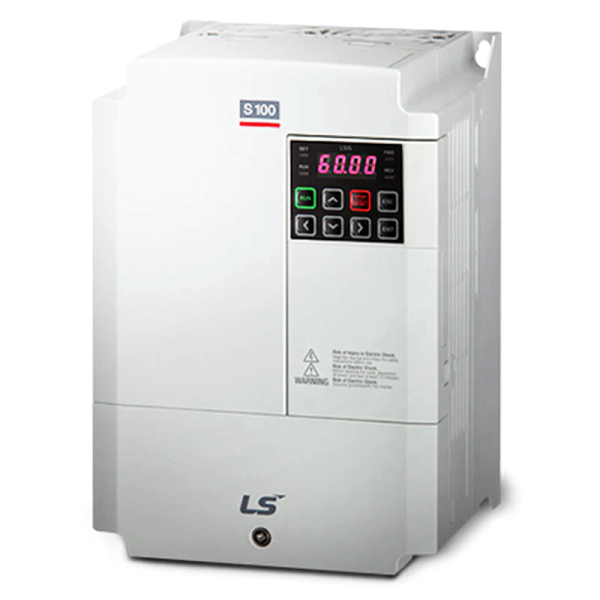

S100 Standard Drive 22kW 3 Phase 380VAC Heavy Duty Dual-Rated DBU C3 EMC Filter Multi I/O
SKU: LV0220S100-4EOFNM
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
High-performance standard drives like the LS Electrical S100 series are made for a variety of industrial uses.
With sensor-less vector control, it provides excellent motor control and can achieve a starting torque of more than 200% at 0.5 Hz.
The S100 series is adaptable to a range of power needs since it can handle single-phase (0.4-2.2kW) and three-phase (0.4-75kW) input voltages.
It improves safety and dependability with integrated DC reactors, Safe Torque Off inputs, and EMC filters.
To provide a smooth integration into current systems, the S100 series also includes energy-saving algorithms, side-by-side installation capability, and compliance with open field networks like Profibus-DP, CANopen, and EtherNet.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Power Rating: 22 / 30 kW.
Input Power Rating: 3-Phase, 400 V AC, 50/60 Hz
Output current: 45,0 A/ 58,0 A
Output voltage: 3 x 400 V AC
Output frequency: 0,1...400 Hz (0-300 Hz for vector control)
Control mode: V/F control, Sensor less vector control.
Supply voltage: 3 Phase 380VAC.
Output Type: Analogue DC 0~10V /4~20mA /0~20mA.
Output Type: Digital Programmable Transistor
Output Type: Digital Programmable Relay (NO/NC)
Other Feature: Built-in EMC Filter
Other Feature: Internal Braking Unit
Display Type: LED
Input Type: 7 Pieces Prog. PNP/NPN
Input Type: Analogue DC 0~10V /4~20mA /0~20mA.
Input Type: Analogue DC 0~10V.
Strength: 22 kW
