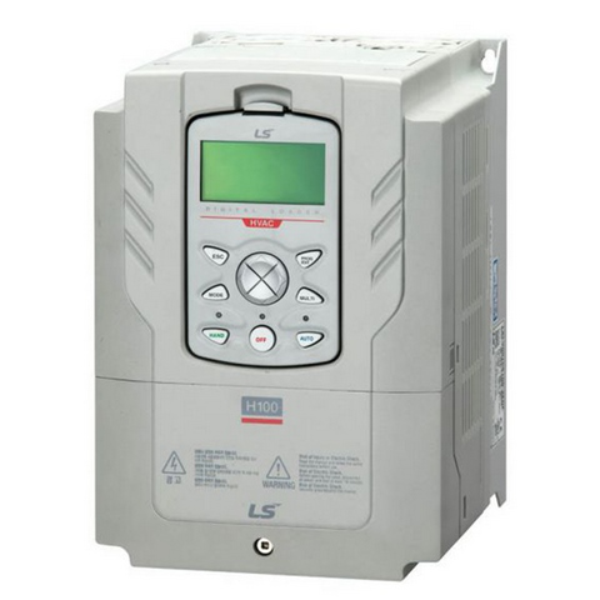

H100 Fan And Pump Drive 55kW 3-Ph 380VAC DC Reactor C3 EMC HVAC Funct. RTC RS-485 (BACnet)
SKU: LV0550H100-4COFD
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The LS Electrical H100 Fan and Pump Drive series is designed for high-performance and energy-efficient operation in HVAC and water treatment systems.
These drives support three-phase input voltages of 200-240V and 380-480V, with power ratings ranging from 0.75kW to 500kW.
The H100 series features a user-friendly keypad, built-in EMC filter, and multiple communication options including Modbus-RTU and BACnet MS/TP.
It also offers advanced functions such as fire mode, multi-motor control, and energy-saving capabilities.
The compact design allows for side-by-side installation, making it ideal for space-constrained environments.
With its robust performance and reliability, the H100 series is a versatile solution for various fan and pump applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Series: H100
Input Range VAC: 380 to 480 Volts AC
Input Phase: 3
HP: 75 Horsepower
Amps: 107 Amps
Operator Controls: Built In
Mounting: DIN Rail
Dimension (H x W x D): 12.8 in x 20.1 in x 11.2 in
Input voltage: 3-phase 380~480VAC (-15%~+10%)
Output voltage: 3-phase 380~480V.
Rated power: 55 kW/75hp
Output power: 82.0 kVA.
Rated input current: 100.1 A
Rated output current: 107 A
Keypad: LCD keypad
UL type: UL Open
EMC filter: EMC integrated.
Reactor: DC integrated
Control method: V/F control, slip compensation.
