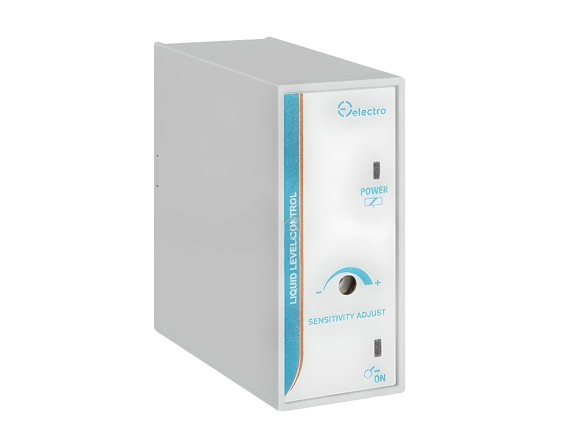

LIQUID LEVEL CONTROLLER 400VAC
SKU: LV1400A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Controller of Liquid Levels:
Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
Conductive liquid level control unit with filling and emptying configurations.
The device can be utilized as a three-probe system to regulate the HIGH and LOW levels of a reservoir, or as a two-probe system for alarm purposes.
By connecting all commons (pin7), a reservoir can use up to four LV1.
It is also possible to modify the unit's sensitivity.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Adaptable sensitivity feature with fail-safe control.
Probe signal with low voltage.
LEDs for the power supply ON and relay ON.
Selectable DIP switch on back COMPLETING/EMPTYING.
Failure-safe monitoring and control of elevated and/or lowered levels.
AC probe signal modulation to avoid electrolytic corrosion.
Liquid conductive controller:
FUNCTION: Emptying/ filling.
CONTACT: 10A SPDT.
PROBE VOLTAGE: 4 VAC.
PROBE CURRENT: 2.5mA.
PROBE FREQUENCY: 100Hz.
SENSITIVITY: 4 - 50Ω.
RATED VOLTAGE: 250V.
MECHANICAL LIFE: 10x106 cycles.
PROTECTION INDEX IP : IP 20.
OPERATING TEMPERATURE: -10 to + 50°C.
STORAGE TEMPERATURE: -50 to + 85°C.
DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64.
