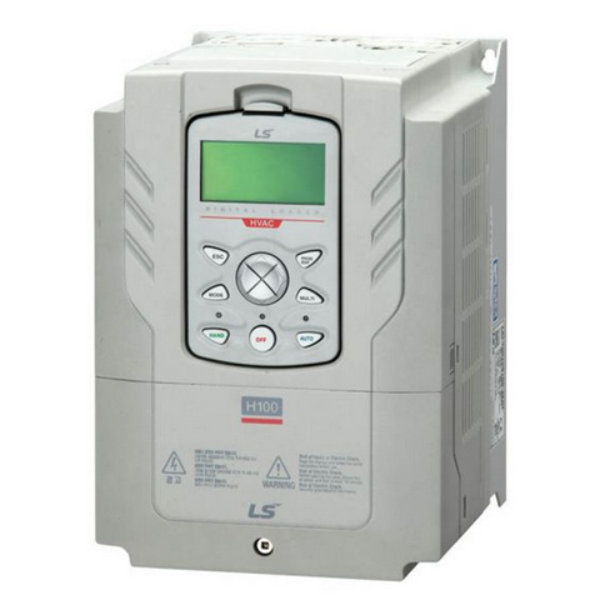

H100 Fan And Pump Drive 250kW 3-Ph 380VAC DC Reactor C3 EMC HVAC Funct. RTC RS-485 (BACnet)
SKU: LV2500H100-4COFD
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The LS Electrical H100 Fan and Pump Drive series is designed for high-performance and energy-efficient operation in HVAC and water treatment systems.
These drives support three-phase input voltages of 200-240V and 380-480V, with power ratings ranging from 0.75kW to 500kW.
The H100 series features a user-friendly keypad, built-in EMC filter, and multiple communication options including Modbus-RTU and BACnet MS/TP.
It also offers advanced functions such as fire mode, multi-motor control, and energy-saving capabilities.
The compact design allows for side-by-side installation, making it ideal for space-constrained environments.
With its robust performance and reliability, the H100 series is a versatile solution for various fan and pump applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
481A Overload Rated Current 120% 1 min.
PID controller MASTER - SLAVE - MULTIPUMP SYSTEM
380-480 Volts
LCD Keypad
IP20
Built-in EMC Filter C3
Power: 250 kW
Voltage Input: 3 phase 380 - 480V at (-15% to +10%) 50 - 60 Hz (±5%)
Voltage Output: 3 phase 380 - 480V
Rated Output Current: 481 A
Overload capacity: 120% / 1 minute.
Output Frequency: 0 – 400 Hz
Operating temperature: -10 °C to +50 °
