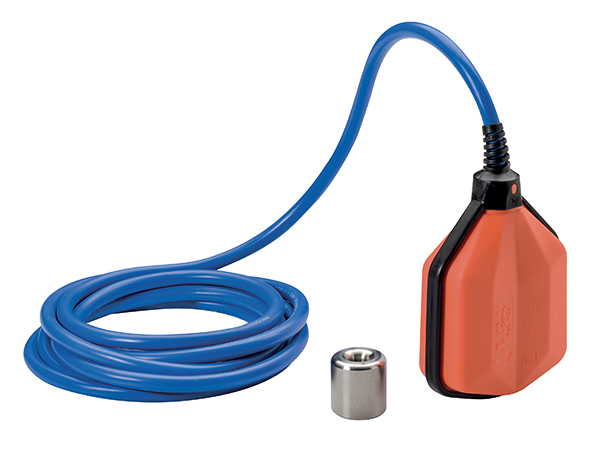

DRINKING WATER FLOAT SWITCH 5 METER
SKU: LVFSA1D05
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Float switches for drinking water, LVFS series:
Applications involving drinking water and food, such as aqueducts, fountains, aquariums, beverages, fish hatcheries, swimming pools, etc., are appropriate for these float switches.
Realized with an untreated stainless-steel sphere, a non-toxic polypropylene outer shell, and an AD8 cable with an ACS health certification and a PVC outer sheath appropriate for use with food products and drinkable water immersion.
Buy currently uses Select Automation shop pricing and checkout.
Features in general:
ACS + AD8 approved PVC cable.
AISI 316 stainless steel counterweight is included.
The distance between the counterbalance and the float can be changed to change the MIN and MAX levels.
During regulator wiring, the filling and/or emptying function can be selected via the changeover contact.
LVFSA SERIES:
DESCRIPTION: Float switch (PVC cable for drinking water applications)
INDEX PROTECTION IP: IP68
INSULATION: Class II
STANDARD OF COMFORMITY: IEC/EN 60730-1/-2-15, TUV certification
ACTIVATION ANGLE: -30° ... +30°
EXTERNAL COUNTERWEIGHT: 130g external counterweight (included)
MODULE WIDTH: 5 meters.
