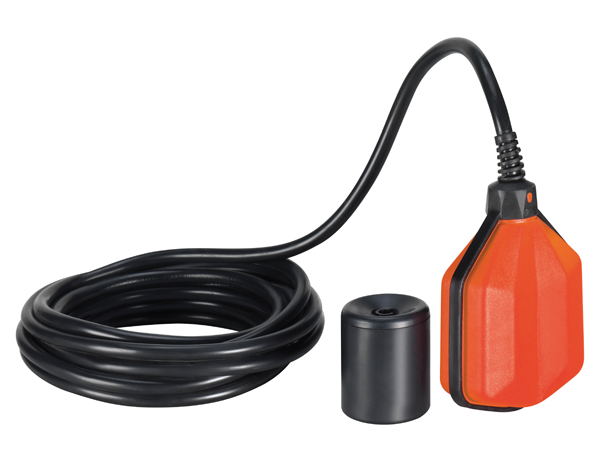

GREY WATER PVC FLOAT SWITCH 5 METER
SKU: LVFSP1W05
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Float switches:
Float switches are used to automate various electrical devices, including alarms, solenoid valves, pumps, and more.
Each model has an internal changeover contact that is triggered by the liquid level at the float's location.
This allows the user to select the "filling" or "emptying" function while wiring the regulator.
Applications for grey water: utilized in industry and civil engineering to regulate groundwater, rainwater, and industrial cooling water levels.
Buy currently uses Select Automation shop pricing and checkout.
LVSP SERIES:
DESCRIPTION: Float switch (PVC cable for grey water applications)
INDEX PROTECTION IP: IP68
INSULATION: Class II
STANDARD OF COMFORMITY: IEC/EN 60730-1/-2-15, TUV certification
ACTIVATION ANGLE: -45° ... +45°
EXTERNAL COUNTERWEIGHT: 130g external counterweight (included)
MODULE WIDTH: 5 meters
