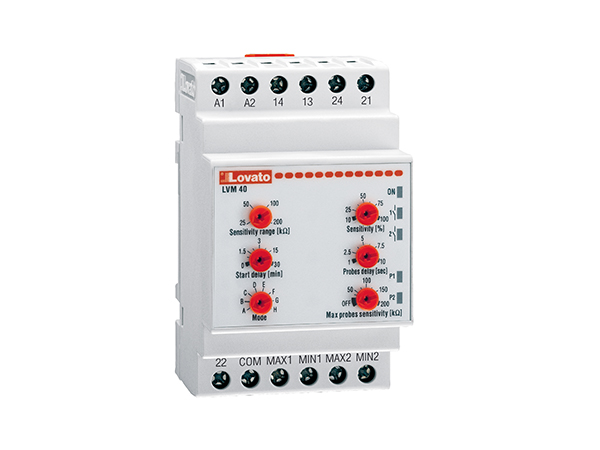

LIQUID LEVEL CONTROL RELAY-5PROBE 2.5 - 200Ω
SKU: LVM40A240
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Level control relays in the LVM series:
The LVM40 has five detection probes: Com, Min1, Max1, Min2, and Max2.
Sensitivity 2.5 - 200Ω (individual foam detection Max adjustment)
Pump start delay 0 - 30 minutes; probe signal delay 1 - 10 seconds.
Typical filling and alarms, or Typical emptying and alarms.
Emptying with change control over startup priority.
Priority start-ups change control filling.
Alarms, tank filling, and well drainage.
Buy currently uses Select Automation shop pricing and checkout.
Features in general:
Monitoring of liquid levels that are electrically conductive.
DIN rail attachment that is modular and fits conventional MCBs.
There is double insulation between the output relay, electrodes, and supply.
SERIES: LVM
DESCRIPTION: 5 probe liquid level control relays
ADJUSTABLE SENSITIVITY: 2.5 - 200Ω
SUPPLY VOLTAGE: 220 - 240 VAC
MODULE WIDTH (MM): 54 (aligns with standard MCB's)
