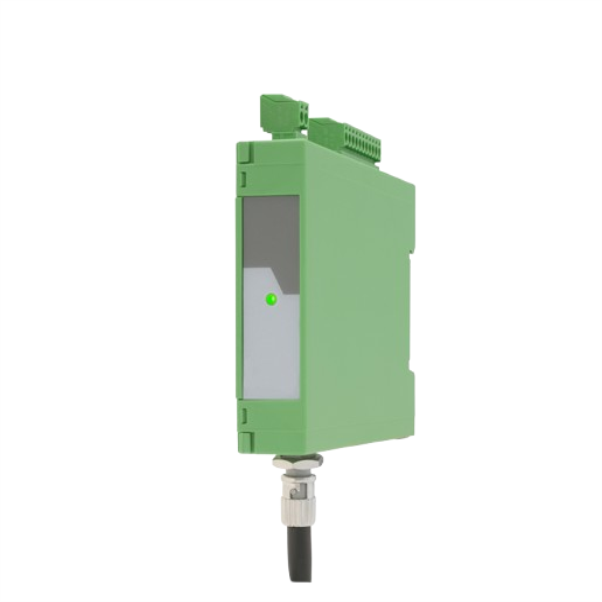

Fiber Optic (Send) Module for RS422 - HTL Signals (up to 3000m) LW213
SKU: LW213
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The purpose of the Motrona LW213 Fiber Optic (Send-)Module is to use optical Fiber to send incremental encoder signals across extended distances.
It ensures dependable data transmission up to 3000 meters by converting the signals from traditional sensors, measurement devices, or rotary encoders into optical Fiber signals.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
Input Signals:
Types: Accepts both HTL (High Threshold Logic) and RS422 signals.
Channels: Accommodates four independent input channels labelled A, B, C, D.
Format: HTL inputs are single ended, while RS422 inputs are differential (includes both positive and negative signals: A, /A, B, /B, etc.).
Output Signals:
Channels: Provides four independent output channels that mirror the input signals.
Format Consistency: Maintains the same signal format as the input signals, ensuring accuracy and consistency.
Maximum Data Rate:
Performance: Supports data transmission rates up to 2 Mbit/s.
Suitability: Suitable for high-speed applications requiring quick signal processing.
Optical Wavelength:
Value: Uses an optical wavelength of 1300 nm.
Compatibility: Compatible with standard multimode optical Fibers.
Conversion Time:
Latency: Features a low conversion time of less than 300 ns.
Efficiency: Ensures minimal delay in signal transmission for real-time applications.
Power Supply:
LW213: Operates on a 5 V DC power supply.
Flexibility: Allows for integration into various power environments.
Housing:
Design: Features a compact snap-on housing for top hat rail (EN 60715).
Installation: Easy to install in standard industrial control panels.
