Key Features:

• Input Signals:
• Channels: The module supports four independent input channels, allowing for extensive data transmission capabilities.
• Formats: It accepts HTL (High Threshold Logic) or RS422 signals, which are commonly used in industrial environments.
• The input signals include both positive and negative pulses (A, /A, B, /B, C, /C, D, /D), ensuring robust and noise-resistant data communication.
• Output Signals:
• Channels: Outputs are provided in four independent channels, mirroring the input signals to maintain data integrity.
• Formats: Outputs can be configured in HTL or RS422 formats, providing flexibility to meet various system requirements.
• This configuration ensures compatibility with existing industrial control systems and measuring equipment.
• Maximum Data Rate:
• Performance: The module supports data transmission rates up to 2 Mbit/s, making it suitable for high-speed applications where rapid data processing is essential.
• This ensures efficient communication without delays or data loss.
• Optical Wavelength:
  Value: The module operates at an optical wavelength of 1300 nm, which is standard for multimode optical Fibers.
• This wavelength ensures minimal signal degradation over long distances, up to 3000 meters.
• Conversion Time: With a conversion time of less than 300 ns, the module provides swift and accurate signal conversion, making it ideal for real-time data transmission applications.
• Transmission Distance:

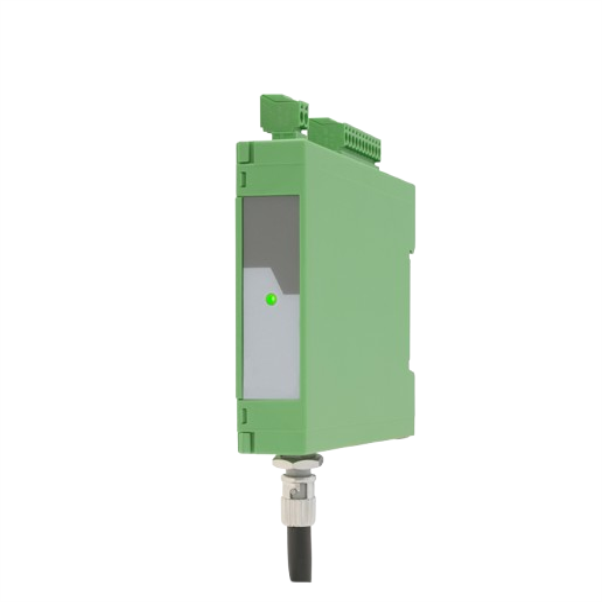

• Range: The LW214 is capable of transmitting signals over distances up to 3000 meters, allowing for extensive coverage in large industrial facilities.
• This long-distance capability is particularly beneficial in environments with strong electromagnetic fields or other potential disturbances.
• Power Supply:
• LW214: Operates on a 5 VDC power supply.
• Flexibility: This variety in power supply options allows the module to be integrated seamlessly into diverse power environments.
• Housing:
• Design: The compact snap-on housing is designed for top hat rail (EN 60715) installation, ensuring easy and secure mounting in standard industrial control panels.
• Installation: The housing design facilitates quick installation and maintenance, saving time and reducing downtime.
