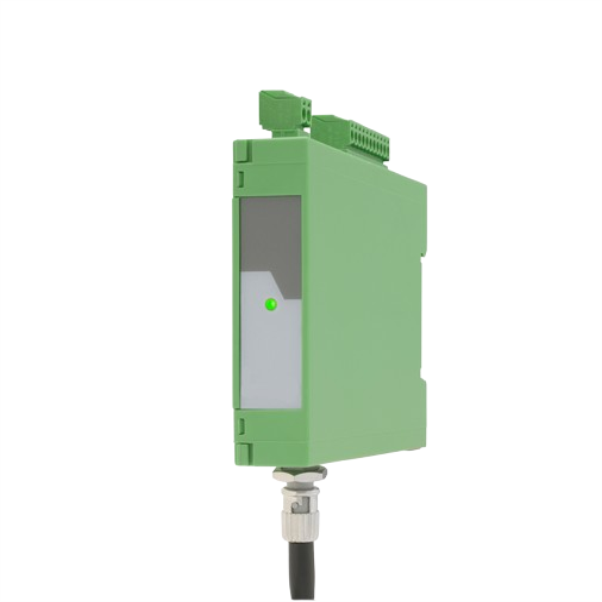

Optical Fiber (Send-) Module for RS422 - HTL Signals (up to 2000 m) LW215
SKU: LW215
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The Motrona LW215 Optical Fiber (Send-) Module is made to use optical fiber to send incremental encoder signals across extended distances.
It ensures dependable data transmission up to 2000 meters by converting the signals from traditional sensors, measurement devices, or rotary encoders into optical fiber signals.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
4 independent input channels with format A, B, C, D [HTL] or A, /A, B, /B, C, /C, D, /D [RS422], also possible for single channel.
4 output channels with format A, B, C, D [HTL] or A, /A, B, /B, C, /C, D, /D [RS422].
Maximum input frequency 1 MHz.
Very short conversion time < 300 ns.
Optical wavelength 850 nm.
Transmission distance up to 2000 meter.
Power supply 5 VDC (for LW215).
Power supply 10 ... 30 VDC (for LW215-1, LW215-2, LW216-3).
Snap-on housing for top hat rail.
(according to EN 60715).
Pre-configured optical Fibers available.
