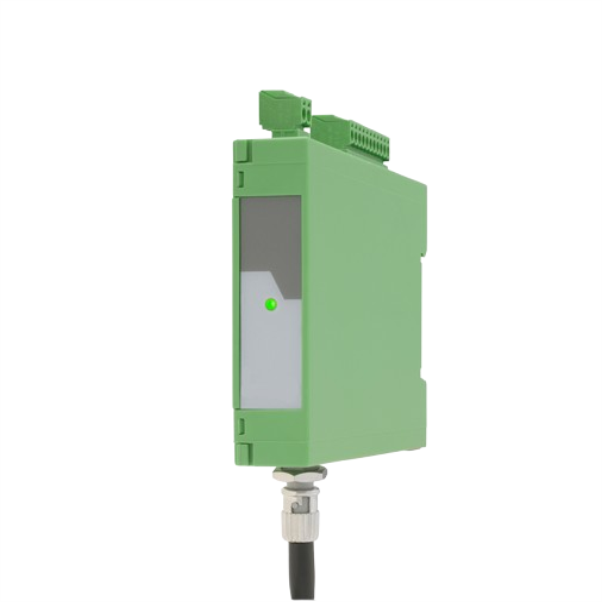

Optical Fiber (Receiver-)Module with Incremental Output LW216
SKU: LW216
Out of stock
* Online sales only
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Pricing available on request
Description:
Long-distance optical signals can be received and converted back into incremental encoder signals using the Motrona LW216 Optical Fiber (Receiver-) Module.
Together with the LW215 send module, it guarantees dependable and quick data transfer via optical Fiber.
Remaining stock can still be purchased. We can quote on an alternative or replacement product.
View recommended replacementRequest a backorder quote. We will confirm price and lead time before payment.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
4 independent input channels with format A, B, C, D [HTL] or A, /A, B, /B, C, /C, D, /D [RS422], also possible for single channel.
4 output channels with format A, B, C, D [HTL] or A, /A, B, /B, C, /C, D, /D [RS422].
Maximum input frequency 1 MHz.
Very short conversion time < 300 ns.
Optical wavelength 850 nm.
Transmission distance up to 2000 meter.
Power supply 5 VDC (for LW216).
Power supply 10 ... 30 VDC (for LW216-1, LW216-2).
Snap-on housing for top hat rail.
(according to EN 60715).
Pre-configured optical Fibers available.
