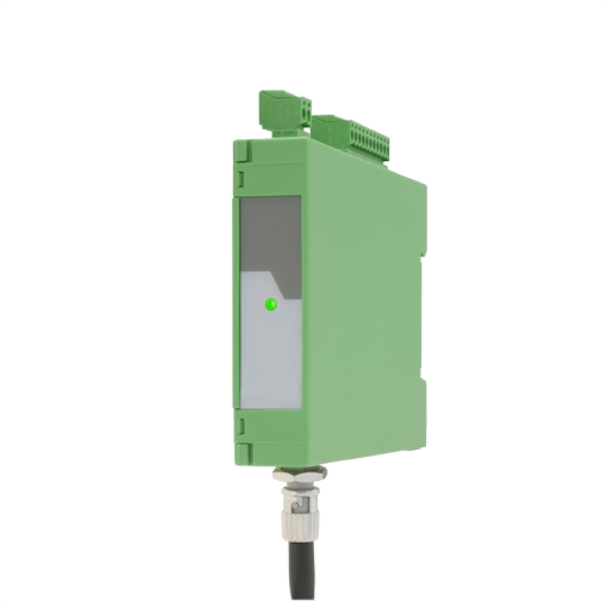

Optical Fiber Send-Module for SSI Absolute Encoder LW217
SKU: LW217
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The purpose of the Motrona LW217 Optical Fiber (Send-) Module is to use optical Fiber to send absolute SSI (Synchronous Serial Interface) encoder signals over extended distances.
It ensures dependable data transmission up to 2000 meters by converting SSI signals from traditional sensors, measurement devices, or encoders into optical Fiber signals.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
1 SSI input / output channel [RS422] with format DATA+, DATA-, CLOCK+, CLOCK-.
1 Error input (LW217) resp. 1 open-drain-output (LW218).
Maximum input frequency 1 MHz.
Very short conversion time < 300 nsec.
Optical wavelength 850 nm.
Transmission distance up to 2000 meter.
Power supply 5 VDC (for LW217).
Power supply 10 ... 30 VDC (for LW217-1).
Free adjustable SSI resolution from 1 ... 99 bits.
Snap on housing for top hat rail.
(according to EN 60715).
Pre-configured optical Fibers available.
