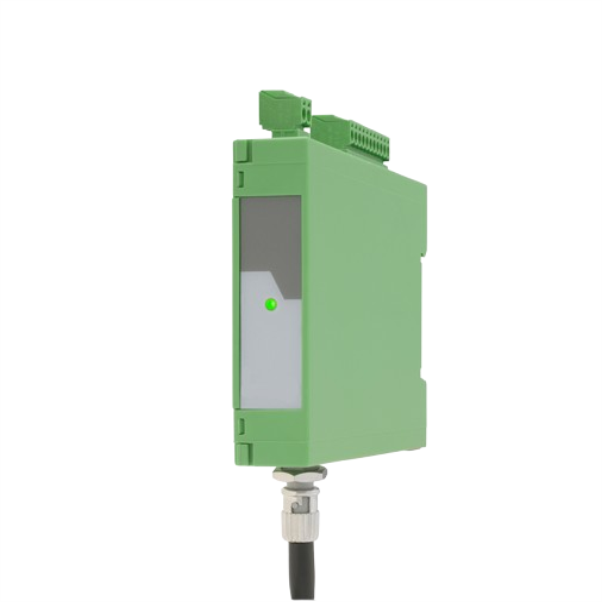

Optical Fibre (Receive-) Module for SSI-Signals LW218
SKU: LW218
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Long-distance optical communications can be received and converted back into SSI (Synchronous Serial Interface) signals via the Motrona LW218 Optical Fiber (Receive-) Module.
Together with the LW217 send module, it guarantees dependable and quick data transfer via optical Fiber.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
1 SSI input / output channel [RS422] with format DATA+, DATA-, CLOCK+, CLOCK-.
1 open-drain-output (LW218).
Maximum input frequency 1 MHz.
Very short conversion time < 300 ns.
Optical wavelength 1300 nm.
Transmission distance up to 2000 meter.
Power supply 5 VDC (for LW218).
Power supply 10 ... 30 VDC (for LW218-1).
Free adjustable SSI resolution from 1 ... 99 bits.
Snap on housing for top hat rail.
(according to EN 60715).
Glass fibre cables are available ready assembled.
