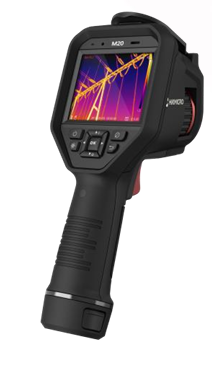

HIKMICRO Thermal Cameras, M20, Handheld Thermography Camera
SKU: M20
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• M Series, Handheld Thermography Camera,
• Manual Focus,
• IR Resolution 256 x 192 (49,152 pixels)
• SuperIR 512 x 384 (196,608 pixels),
• Pixel pitch 12 μm,
• Display 3.2" LCD Screen,
• FOV 25°x 18.8°,
• Visual Modes: Thermal/Visual/Fusion/PIP/Blending,
• Colour Palettes White Hot; Black Hot; Rainbow; Ironbow; Red Hot; Fusion; Rain; Blue Red,
• Storage Media: Built-in 32GB Flash Memory Approx. 60,000 Images,
• Video Storage Capacity 15 Hours,
• Battery Operating Time Approx. 6 Hours,
• Image Frequency 25Hz,
• NETD
Buy currently uses Select Automation shop pricing and checkout.
M20, Handheld Thermography Camera
• HIKMICRO M20 handheld thermography camera is specially designed for professional inspections.
• It’s equipped with a 256 × 192 resolution thermal detector and an 8MP resolution visual camera.
• The high resolution 3.5-inch touch screen displays crisp, clear images and streamlines camera operations.
• Imaging modes include thermal, visual, picture in a picture of the optical and thermal view, and fusion of both channels.
• The M20 quickly identifies potential faults, quantifies the impact with accurate temperature measurement, provides detailed documentation to complete your inspections efficiently.
