Unidrive M600-03400025A10 AC drives
SKU: M600-03400025A10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

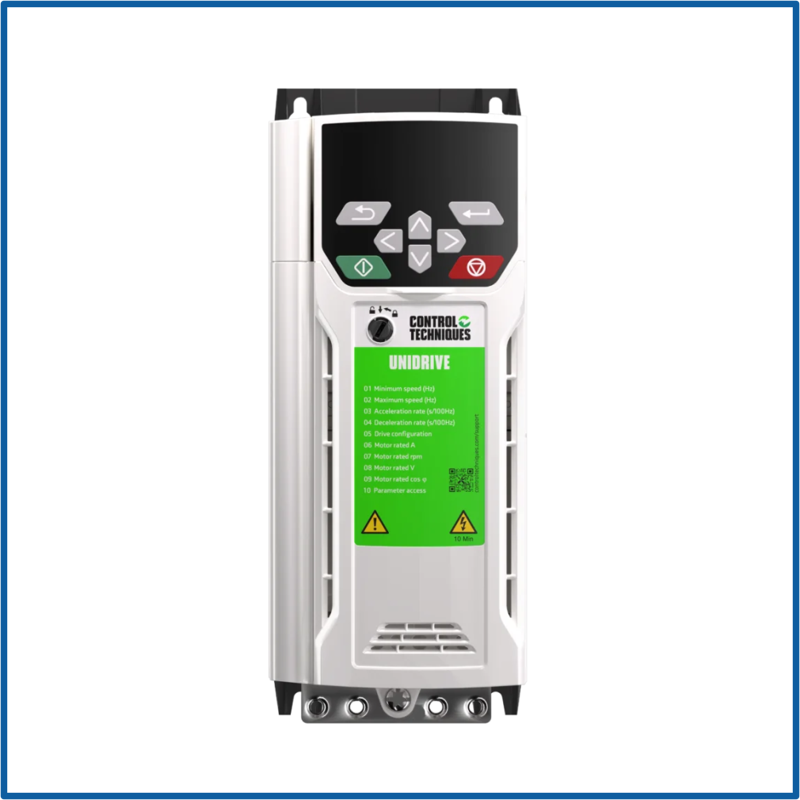

The Nidec Control Techniques Unidrive M600-03400025A10 is a high-performance AC drive developed for open-loop control of induction and permanent magnet motors.
The Unidrive M600 series offers power ratings ranging from 0.75 kW to 2.8 MW, making it suited for small and large industrial applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: M600 03400025A10.
Series: Unidrive M600 (open loop high performance drive).
Power Range: 0.75 kW – 2.8 MW (1–4,200 hp).
Voltage Options: 200 V / 400 V / 575 V / 690 V three phase input.
Motor Types Supported: Induction, permanent magnet, and hybrid PM motors.
Control Method: Advanced Rotor Flux Control (RFC) for sensorless operation.
Frequency Range: Up to 3,000 Hz open loop.
Overload Capacity: Heavy duty ratings available (up to 180% overload depending on frame size).
Integration:
Option modules for Ethernet, Modbus, CANopen, EtherCAT, PROFINET.
Onboard PLC functionality.
Encoder port for precise closed loop operation (optional).
Safety Compliance: Designed to meet EU Machinery Directive 2006/42/EC.
