Unidrive M600-03400045A10 AC drives
SKU: M600-03400045A10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

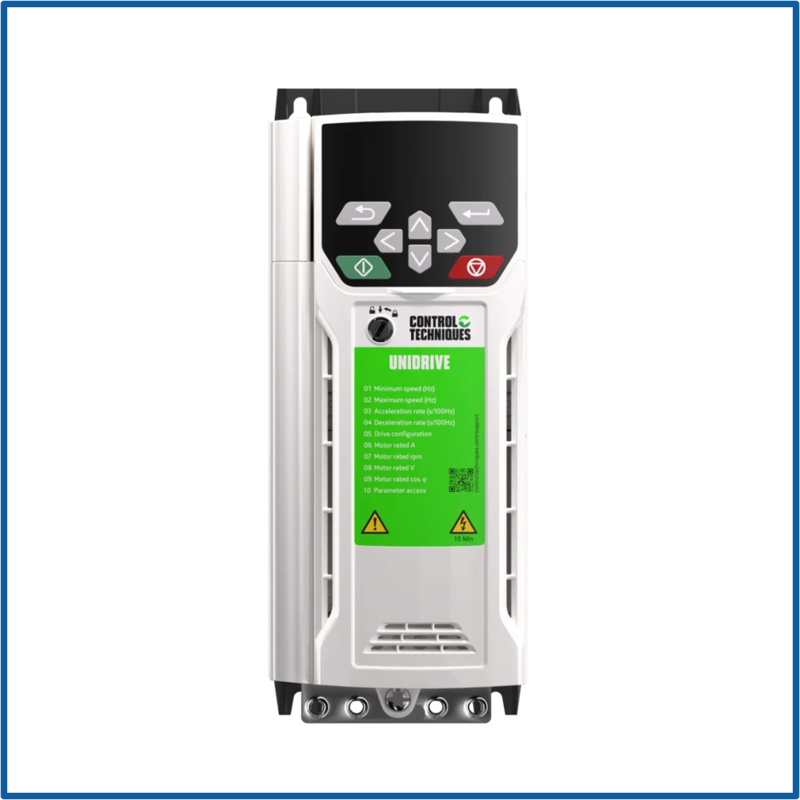

The Nidec Control Techniques Unidrive M600-03400045A10 is a high-performance AC drive from the M600 series.
It is designed for open-loop control of induction and permanent magnet motors.
It provides superior sensorless motor control, a wide voltage range, and modular integration choices for industrial automation.
High-performance, sensorless control for induction and PM motors.
Scalable power ranges from fractional kW to multi-MW.
Modular expansion cards provide flexible communication possibilities.
User-friendly features include a clickable keypad and parameter backup via Smartcard.
Industrial dependability: Designed for continuous operation under severe conditions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: M600 03400045A10.
Series: Unidrive M600 (open loop high performance drive).
Power Range: 0.75 kW – 2.8 MW (1–4,200 hp).
Voltage Options: 200 V / 400 V / 575 V / 690 V three phase input.
Motor Types Supported: Induction, permanent magnet, hybrid PM motors.
Control Method: Rotor Flux Control (RFC) sensorless operation.
Frequency Range: Up to 3,000 Hz open loop.
Overload Capacity: Heavy duty ratings available (up to 180% overload depending on frame size).
Integration:
Modular option slots for Ethernet, Modbus, CANopen, EtherCAT, PROFINET.
Onboard PLC functionality.
Smartcard/SD card slot for parameter backup.
Safety Compliance: Meets EU Machinery Directive 2006/42/EC.
