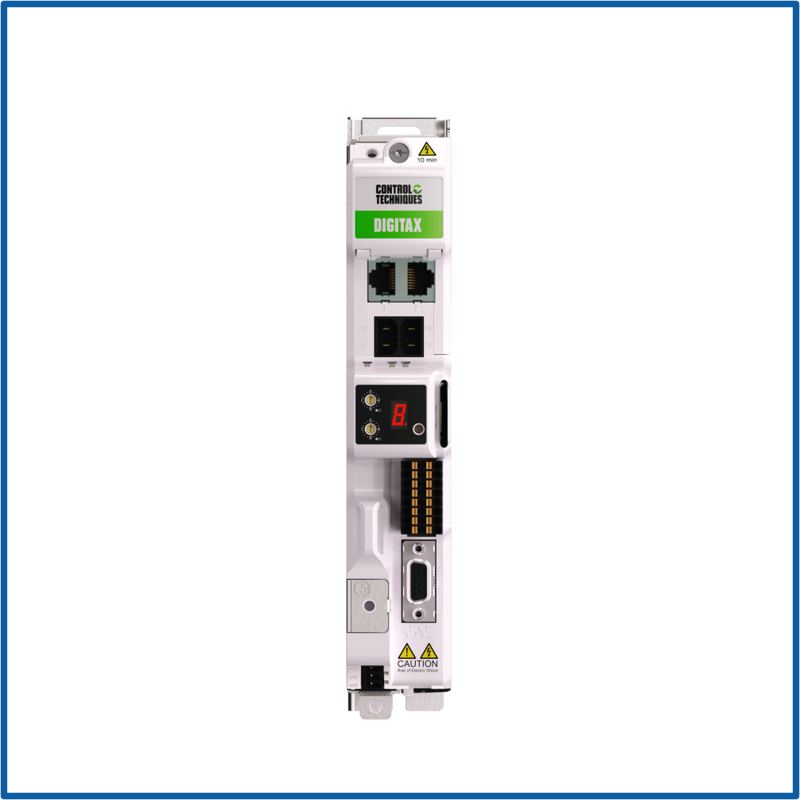

Digitax HD M751-03400135A10
SKU: M751-03400135A10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Digitax HD M751 is part of Nidec Control Techniques' Digitax HD line, a compact, high-performance servo drive designed for demanding industrial automation.
The M751 model combines excellent motion control with modular expansion, making it adaptable and option-ready.
The platform supports servo and induction motors, providing accurate control, high dynamic response, and adaptability to various communication protocols via plug-in modules.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Servo:
Max Continuous Current (A): 13.5.
Peak Current (A): 40.5.
AC induction:
Max Continuous Current (A): 13.5.
Open-loop Peak Current (A): 20.3.
Closed-loop Peak Current (A): 40.5.
Motor Shaft Power (kW): 5.5.
Motor Shaft Power (HP): 7.5.
