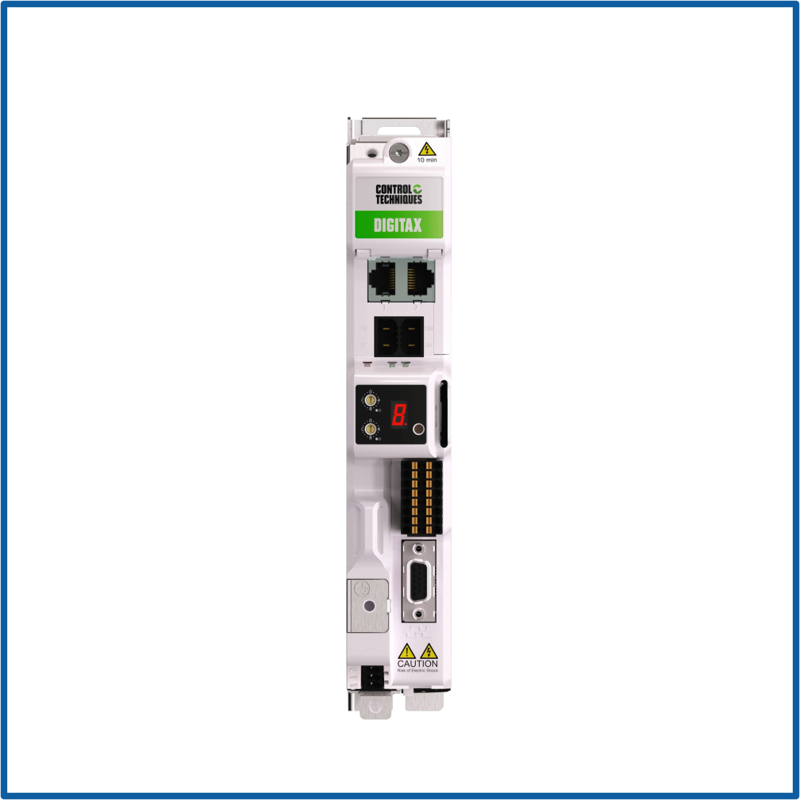

Digitax M753-02200090A10
SKU: M753-02200090A10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Digitax M753 includes a 2-port EtherCAT switch for convenient integration into centralised motion control systems.
EoE (Ethernet over EtherCAT) compatibility enables PC tool connection for commissioning and monitoring via the EtherCAT network.
The station alias can be dynamically allocated by the Ethernet master or hardwired using the display's two rotary switches.
An optional RS485 adaptor allows for a backup PC tool connection in case of network loss.
Work with any automation product using EtherCAT.
Connect with motion controllers, PLCs, and industrial PCs via built-in EtherCAT.
Dual 100Mbps EtherCAT interfaces support in-line topologies.
Non-cyclic data transfer via CANopen over EtherCAT (CoE) mailbox.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Servo:
Max Continuous Current (A): 5.6.
Peak Current (A): 27.
AC induction:
Max Continuous Current (A): 5.6.
Open-loop Peak Current (A): 13.5.
Closed-loop Peak Current (A): 27.
Motor Shaft Power (kW): 1.1.
Motor Shaft Power (HP): 1.5.
