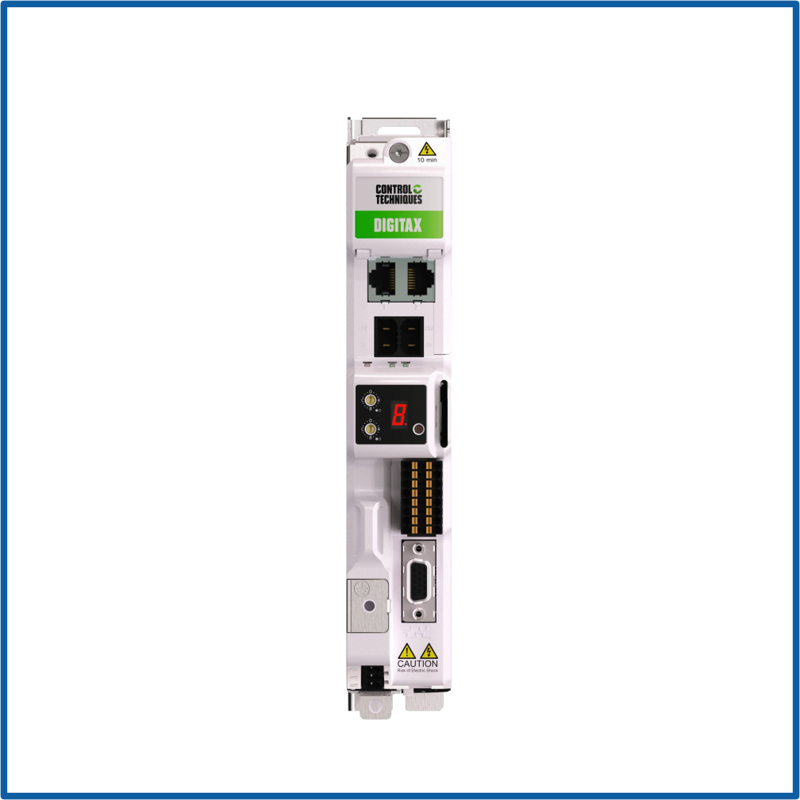

Digitax M754-02400080A10100AB101
SKU: M754-02400080A10100AB101
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Digitax M754 servo drive features a powerful MCi second processor, opening new machine design options.
The inbuilt MCi processor allows for real-time control of numerous drives and motors.
Onboard Ethernet with RTMoE (Real Time Motion over Ethernet) synchronizes and communicates between drives utilizing the Precision Time Protocol (PTP) established by IEEE1588 V2.
Modbus TCP/IP on the included 2-port standard Ethernet switch enables seamless connection with external components including Remote I/O, HMIs, and PLCs.
Two Ethernet ports and an integrated switch.
Support for typical Ethernet protocols.
RTMoE of synchronized cyclic data at 250 μs.
Modbus TCP/IP Master.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Servo:
Max Continuous Current (A): 8.
Peak Current (A): 24.
AC induction:
Max Continuous Current (A): 8.
Open-loop Peak Current (A): 12.
Closed-loop Peak Current (A): 24.
Motor Shaft Power (kW): 3.
Motor Shaft Power (HP): 5.
