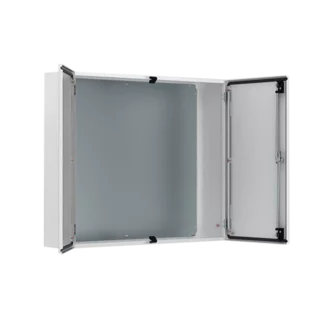

Double door Mild Steel Wall mounting Enclosure MAD0608030R5
SKU: MAD0608030R5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
When installing in cramped places, where a single door would take up unnecessary room in front of the enclosure when opened, the mild steel double door wall-mounted enclosure range, MAD, is perfect.
As it is divided between two doors, the loading capacity of the doors also increases.
The enclosure's components are adequately secured thanks to its IP 55 protection level, which makes it suitable for a wide range of applications.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Material: Mild steel, 1.5 mm in the body.
Mild steel, 1.4 mm thick gland plate.
Door: mild steel, 2 mm
Mounting plate: 2 mm galvanized steel or 2.5 mm MAD1001030R5 and higher.
Body: Seam welded and folded.
Air circulation is facilitated around the rear part of the enclosure by four 8.5 mm diameter wall fixing holes that are pressed out in 20.4 mm diameter × 2 mm depressions.
Door: 130° opening, surface mounted.
Concealed, detachable hinges with a captive pin.
Door profiles MMDP are mounted using inner M6 welded studs.
The right door has two detachable mounting profiles, and the left door has two.
An injected one-piece polyurethane gasket ensures sealing.
Double-bit customized lock for simple door opening.
90° movement and a 3 mm insert in the double bit.
Espagnolette is locked with three points.
Additional inserts can be purchased as an accessory.
The mounting plate has vertical markings spaced 10 mm apart to make equipment installation horizontally simple.
To make cable fixing easier, there are holes on both the top and bottom.
Fixed to M8 press-welded studs at the enclosure's rear.
From 800 mm upwards, folded edges reinforce every side.
Specifications:
Hight: 600mm
Width: 800mm
Depth: 300mm
Material: mild steel
Latch quantity: 1
Cable entry: 310 x 96mm
Cable quantity: 2
Finish: powder coated
Colour: light grey
Colour code: RAL 7035
Body thickness: 1.5mm
Door thickness: 2mm
Panel size: 570 x 750mm
Weight: 34.8 kg
