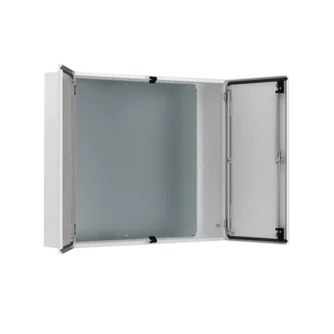

Double door Mild Steel Wall mounting Enclosure MAD1001030R5
SKU: MAD1001030R5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
When installing in cramped places where a single door would take up excessive room in front of the enclosure when opened, the mild steel double door wall-mounted enclosure range, MAD, is perfect.
As it is split between two doors, the loading capacity of the doors also rises.
The enclosure's components are well-protected and well-suited for a wide range of applications thanks to its IP 55 protection degree.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Material: Body: 1.5 mm mild steel.
Gland plate: 1.4 mm mild steel.
Door: 2 mm mild steel
Mounting plate: 2 mm galvanized steel / 2.5 mm MAD1001030R5 and above.
Body: Folded and seam welded.
Air circulation is facilitated around the rear portion of the enclosure by four 8.5 mm-diameter wall fixing holes that are pressed out in 20.4 mm-diameter × 2 mm-diameter depressions.
Door: 130° opening, surface mounted.
Hidden detachable hinges using a captive pin.
Door profiles (MMDP) are mounted using inner M6 welded studs.
The right door has two replaceable mounting profiles, as does the left door.
An injected, one-piece polyurethane gasket ensures sealing.
Lock: Double-bit customized lock for simple door opening.
90° movement and a 3 mm insert in the double bit.
Espagnolette is locked with three points.
Additional inserts can be purchased as an accessory.
Mounting plate: To facilitate simple horizontal equipment location, the mounting plate has vertical markings placed 10 mm apart.
To make cable fixing easier, there are holes on both the top and bottom.
Fixed to M8 press-welded studs at the enclosure's back. From 800 mm forward, folded edges reinforce every side.
Specifications:
Height: 1000mm
Width: 1000mm
Depth: 300mm
Material: Mild steel
Latch quantity: 1
Cable entry: 410 x 96mm
Cable entry quantity: 2
Finish: Powder coated
Colour: Light Grey, RAL 7035
Body thickness: 1.5 mm
Door thickness: 2 mm
Panel size: 970 x 950 mm
Weight: 72.9 kg
