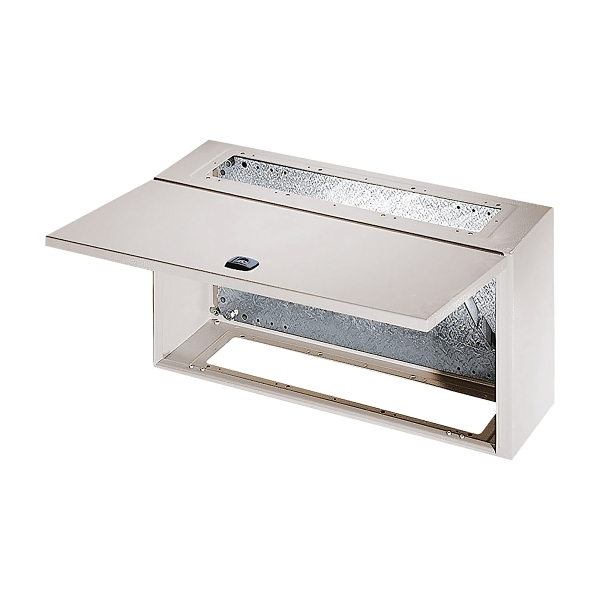

Horizontal Single door Mild Steel Wall mounting Enclosure MAP0308030R5

Features: Material: mild steel, 1.5 mm in the body. Mild steel, 1.4 mm thick gland plate. Door: mild steel, 1.5 mm MAP0308030R5 and above, or 2 mm MAP0306030R5. Mounting plate: 2 mm thick steel, galvanized. Body: seam-welded and folded. Additional inserts can be purchased as an accessory. Mounting plate: To facilitate simple horizontal equipment location, the mounting plate has vertical markings placed 10 mm apart. To make cable fixing easier, there are holes on both the top and bottom. Fixed to M8 press-welded studs at the enclosure's rear. From 800 mm forward, folded edges reinforce every side. Both the top and bottom of the gland plate are open. Positioned at the rear of the enclosure to provide easy wiring onto the mounting plate. Gaskets (AG) and gland plates (AF) are not supplied. The gland plate from the MAS/MAD enclosure can be utilized with the MAP panel if it is to be coupled with one of these enclosures. Protection: If the gland plate(s) and gasket(s), which are supplied as an accessory, are mounted, the mounted standalone complies with IP 66 | TYPE 4, 12 | IK 10. In accordance with IP 55 | TYPE 12 when combined with MAS or MAD. Specifications: Height: 300mm Width: 800mm Depth: 300mm Material: Mild steel Finish: Powder coated Colour: Light Grey, RAL 7035 Body thickness: 1.5 mm Door thickness: 1.5 mm Latch quantity: 2 Cable entry: 310 x 96 mm Cable entry quantity: 4 Max mounting depth: 282 mm Panel size: 270 x 750 mm
