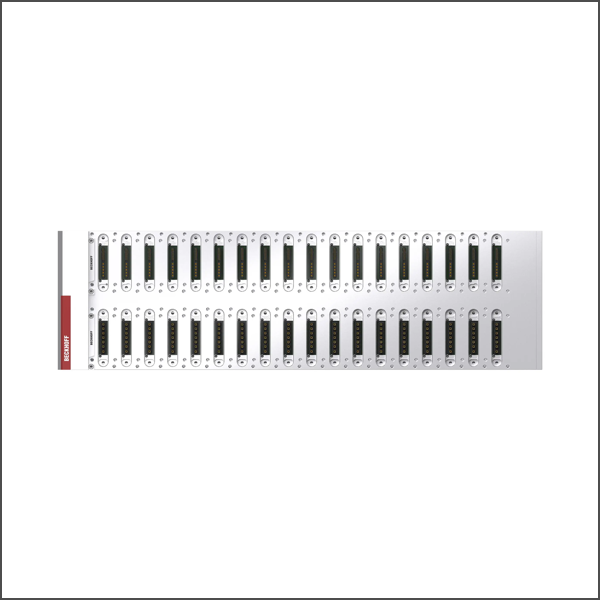

Baseplate MB2018-0000-0000
SKU: MB2018-0000-0000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The MB2012-0000-0000 baseplate has 12 combined data and power slots. The first slot is intended for the EtherCAT connection. This slot can only be used by an IPC or coupler module. The further slots can be occupied with any 1- or 2-row modules. The baseplate has 6 connection points for the potential equalization.
The integrated housekeeping acquires data on temperature, shock, vibration, air pressure and humidity and enables dew point monitoring, among other things. Performance+ additionally offer Bluetooth diagnostics.
Buy currently uses Select Automation shop pricing and checkout.
Product category: baseplates
Category/version: 2-row
Communication: EtherCAT
Combined data/power slots: 18
Connection points potential equalization: 6
Housekeeping: Performance+
Diagnostics: yes
TwinCAT version: TwinCAT 3
Approvals/markings: CE, (UL in preparation)
Dimensions (W x H x D): 837 mm x 274 mm x 35 mm
Number of rows: 2
Weight: 6400 g
Material: aluminium
Cooling: convection
Operating/storage temperature: 0…+50 °C/-25…+85 °C
Protect. rating/installation pos.: IP65/67/variable
