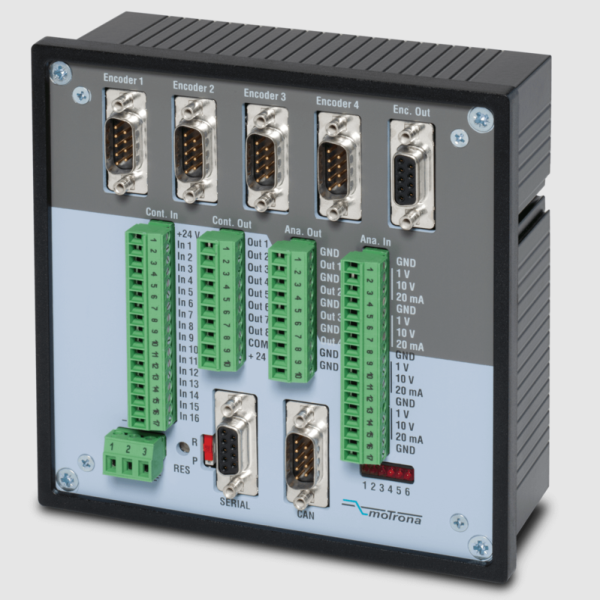

Intermittent Printing Label Printing and Rotary Punching Controller MC700
SKU: MC700
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The MC700 Intermittent Printing, Label Printing, and Rotary Punching Controller is a universal motion controller for 1 to 4 axes that can be programmed for a variety of motion applications by simply downloading the appropriate firmware.
Motrona has created motion control firmware for a wide range of common printing, punching, and labelling applications.
Our solutions have been proven and tested, and they are ready to use immediately.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
4 pulse inputs with the format A, /A, B, /B [RS422].
4 scalable 12-bit analogue inputs for ±10 V or 0/4...20 mA.
8 control inputs for PNP signals (10–30 VDC).
4 scalable 12-bit analogue outputs for 0/4...20 mA or ±10 V.
Short loop time (depending on the application).
Power supply: 18–35 VDC.
Snap-on housing for the top hat rail (EN 60715).
Setup using Windows operator software (free of charge).
Interfaces OnBoard: CANopen and RS232.
