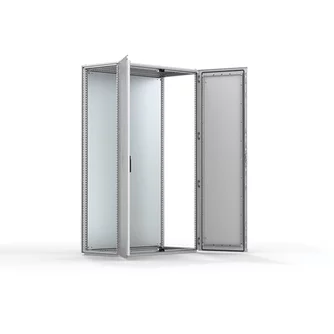

MultiFlex Floor standing fixed sides double door cabinet MCD20086R5
SKU: MCD20086R5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The MCD series of mild steel double-door combinable floor-standing enclosures is perfect for installation in cramped areas where a single door would take up excessive space in front of the enclosure when opened.
The loading capacity of the doors increases when they are separated into two.
The enclosure's components are adequately secured due to its IP 55 protection level, which makes it suitable for a wide range of applications.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Material: Painted 1.5 mm steel frame.
Doors: coated steel, 2 mm thick.
Side, roof, and rear panels are painted 1.5 mm steel.
Mounting plate: galvanized steel, 3 mm thick.
Steel bottom plates, 1 mm galvanized.
Frame: In accordance with DIN 43660, seam-welded inverted open profiles with a 25 mm hole pattern.
Roof panel: easily removed.
Lock: The main door's Espagnolette 4-point locking system and the slave door's 2-point locking system.
Typical double-bit lock featuring a 3 mm insert.
Accessories include T-handles, lift handles, cylinders, and standard inserts.
Bottom plates: made up of three or four parts (D > 600).
Mounting plate: It slides into place after being double-folded.
Depth can be adjusted in 25-mm increments with the MPD02 accessory.
Supplied, affixed to the exterior of the enclosure package.
Earthing: Every panel has a distinct earthing stud and is earthed through its fittings.
Finish: powder coating with structure in RAL 7035.
Protection: IP55, TYPE 12, and IK 10 compliant.
Specifications:
Height: 2000mm.
Width: 800mm.
Depth: 600mm.
Door/Rear panel: Rear panel.
Mounting plate included.
Material: Mild steel.
Finish: Powder coated.
Colour: Light Grey.
Colour code: RAL 7035.
Body thickness: 1.5mm.
Door thickness: 2mm.
