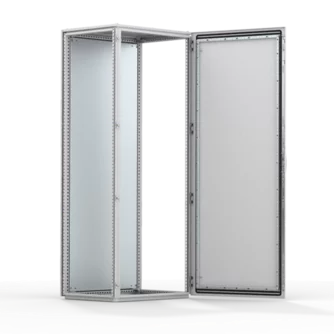

MultiFlex Floor standing fixed sides single door cabinet MCS18064R5
SKU: MCS18064R5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The mild steel single door combinable floor standing enclosure range, MCS, with an IP 55 protection level, is available off-the-shelf in a variety of sizes.
There are numerous applications that are ideal for this variety of enclosures.
Water and dust are prevented from entering the enclosure, eliminating the danger of component failure and wasted downtime.
To guarantee that the specified protection degree is met, mild steel side panels, or SPM, must be bought individually to close specific enclosures and enclosure assemblies.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Material: Painted 1.5 mm steel frame.
Door: coated steel, 2 mm thick.
Side, roof, and rear panels are painted 1.5 mm steel.
Mounting plate: galvanized steel, 3 mm thick.
Steel bottom plates, 1 mm galvanized.
Frame: In accordance with DIN 43660, seam-welded inverted open profiles with a 25 mm hole pattern.
Incorporating a pattern of integrated exterior holes.
Door: Mounted on four hinges that enable opening from the left or the right.
Comprising a door frame with a hole pattern of 25 mm.
Roof panel: easily removed.
The Espagnolette 4-point locking mechanism is the lock.
Does not interfere with the inside space of the enclosure.
Earthing: Every panel has a distinct earthing stud and is earthed through its fittings.
Finish: Powder coating with structure in RAL 7035.
Protection: IP 55 | TYPE 12 | IK 10 compliant.
Installation requirements: Ready for combined installation with standard delivery.
Specifications:
Height: 1800mm.
Width: 600mm.
Depth: 400mm.
Mounting Plate included.
Material: Mild steel.
Finish: Powder coated.
Colour: Light Grey.
Colour code: RAL 7035.
Body thickness: 1.5mm.
Door thickness: 2mm.
Door/Rear Panel: Rear panel.
