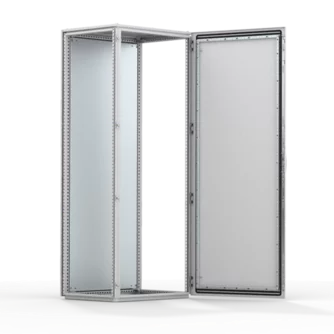

MultiFlex Floor standing fixed sides single door cabinet MCS20104R5
SKU: MCS20104R5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The mild steel single-door combinable floor standing enclosure range, known as MCS, comes in a variety of sizes and may be purchased off-the-shelf with an IP 55 protection degree.
There are numerous applications that are ideal for this variety of enclosures.
Since dust and water cannot enter the enclosure, there is no chance of component failure and the ensuing needless downtime.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Material: Painted 1.5 mm steel frame.
Door: coated steel, 2 mm thick.
Side, roof, and rear panels are painted 1.5 mm steel.
Mounting plate: galvanized steel, 3 mm thick.
Steel bottom plates, 1 mm galvanized.
Frame: In accordance with DIN 43660, seam-welded inverted open profiles with a 25 mm hole pattern.
Roof panel: easily removed.
The Espagnolette 4-point locking mechanism is the lock.
Doesn't impede the inside space of the enclosure.
Typical double-bit lock featuring a 3 mm insert.
Accessories include T-handles, lift handles, cylinders, and standard inserts.
Bottom plates: consist of three or four parts (D > 600).
Mounting plate: It slides into place after being double-folded.
Depth can be changed in 25-mm increments with the MPD02 add-on.
Supplied, fastened to the exterior of the package casing.
Earthing: Every panel has a distinct earthing stud and is earthed through its fittings.
Finish: powder coating with structure in RAL 7035.
Protection: IP 55, Type 12, and IK 10 compliant.
Specifications:
Height: 2000mm.
Width: 1000mm.
Depth: 400mm.
Mounting plate included.
Material: Mild steel.
Finish: Powder coated.
Colour: Light grey.
Colour code: RAL 7035.
Body thickness: 1.5mm.
Door thickness: 2mm.
Door/Rear panel: Rear panel.
