Multi-Flex Single door combinable stainless steel cabinet MCSS18065
SKU: MCSS18065
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

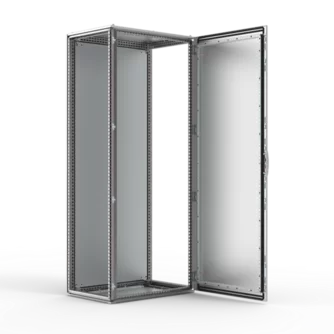

The nVent Hoffman MCSS18065 is a premium stainless-steel floor-standing enclosure with a single door that can be combined.
It is intended to offer strong defence for electronic and electrical parts in a range of industrial settings.
Flexible configurations to satisfy specific size and installation requirements are made possible by the modular architecture.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material:
Body: AISI 304L / AISI 316L pre-grained stainless steel.
Frame: 1.5 mm.
Door: 2 mm.
Rear, roof, and side panels: 1.5 mm.
Bottom plates: 1.5 mm stainless steel.
Mounting Plate: 3 mm galvanized steel.
Construction:
Frame: Seam welded reversed open profiles with a 25 mm hole pattern, according to DIN 43660.
Door: Mounted with four hinges allowing left or right-hand opening, including door frame with a 25 mm hole pattern.
Rear Panel: Fitted by M6 torx screws with standard facilities for rear door mounting.
Roof Panel: Removable.
Bottom Plates: One-piece bottom plate with injected polyurethane gasket to ensure maximum sealing.
Mounting Plate: Double folded and slides into position, adjustable in depth by steps of 25 mm with the MPD02 accessory.
Locking Mechanism:
Espagnolette 4-point locking system that does not interfere with the enclosure’s inner space.
Standard double-bit 3 mm insert.
Standard inserts, cylinders, lift handles, and T-handle available as accessories.
Earthing: All panels are earthed through their fittings and equipped with a separate earthing stud.
Protection: IP 55 | TYPE 12 | IK 10.
Finish:
400 pre-grained stainless steel.
Unpainted.
Dimensions:
Height: 1800 mm.
Width: 600 mm.
Depth: 500 mm.
Panel Size: 169.39 x 49.40 cm.
Weight: 103 kg.
Industry Standards:
UL 508A Listed; Type 12; File No. E92044.
cUL Listed per CSA C22.2 No.0, No.0.4, No.14, No.94; Type 12; File No. E92044.
NEMA/EEMAC Type 12.
CSA, File No. 1442951: Type 12.
IEC 62208 IP55.
KEMA, GOST, Lloyds, CE, EAC.
This enclosure is ideal for environments requiring high protection against water and dust, such as food and beverage, pharmaceuticals, and other industrial applications.
