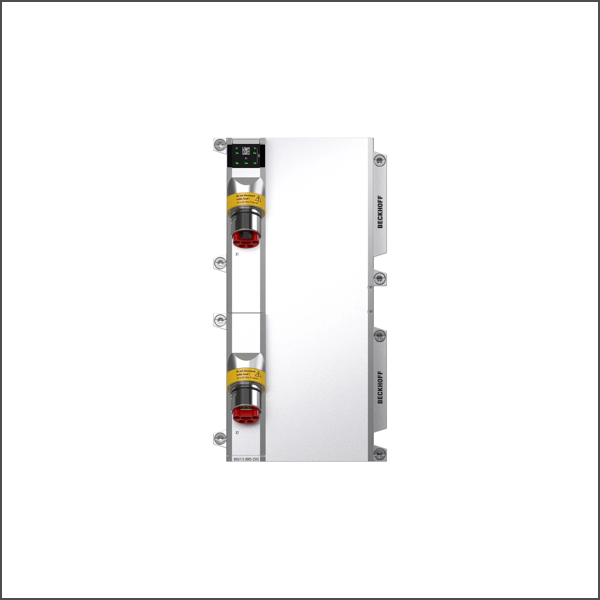

DC link power supply MD6015-0003-2345
SKU: MD6015-0003-2345
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The DC link power supply unit generates the DC link voltage for supplying the axis modules and the option modules from the mains voltage.
Buy currently uses Select Automation shop pricing and checkout.
Product category: drive modules
Category/version: DC link power supply
Supply voltage from backplane: 400…480 V AC
Output current power connector: 15 A
Connection method: B23
Capacity: for intermediate circuit
Input filter: yes
Performance: unregulated
DC link voltage: max. 848 V DC
Baseplate interface: data and power connector
Diagnostics: yes
Distributed clocks: no
Hot swap: no
TwinCAT version: TwinCAT 3
Approvals/markings: CE, cULus, EAC
Dimensions (W x H x D): 70 mm x 240 mm x 152 mm
Number of rows: 2
Number of slots: 3
Material: zinc die-cast
Cooling: convection
Operating/storage temperature: 0…+50 °C/-25…+85 °C
Protect. rating/installation pos.: IP65/67/variable
