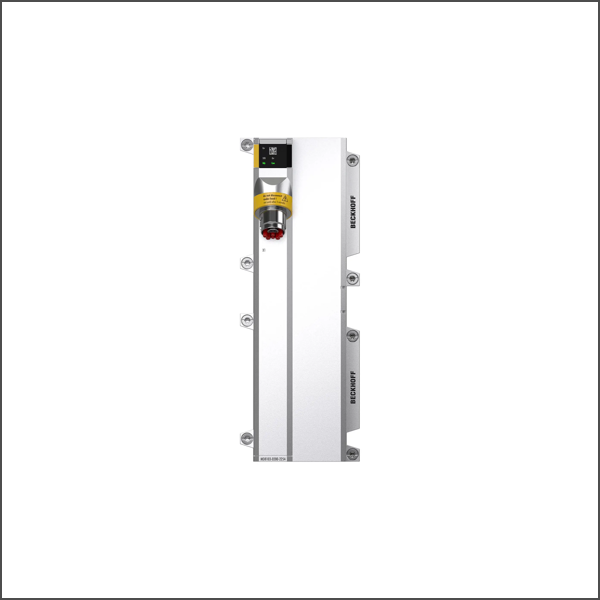

servo drives MD8103-0200-2254

Product category: drive modules Category/version: servo drives Channels: 1 Supply voltage from backplane: 600 V DC Output current: 3 A per channel Connection method: B17 Feedback: OCT Drive profile: CiA402 according to IEC 61800-7-201 (CoE) Safety functions: Safe Motion Safety standard: EN ISO 13849-1: 2015 (Cat 4, PL e), EN 61508: 2010 (SIL 3) Peak output current (channel): 9 A DC link voltage: max. 848 V DC Baseplate interface: data and power connector Diagnostics: yes Distributed clocks: no Hot swap: no TwinCAT version: TwinCAT 3 Approvals/markings: CE, cULus, EAC Dimensions (W x H x D): 70 mm × 240 mm × 112 mm Number of rows: 2 Number of slots: 2 Material: zinc and aluminum die-cast Cooling: convection Operating/storage temperature: 0…+50 °C/-25…+85 °C Protect. rating/installation pos.: IP65/67/variable
