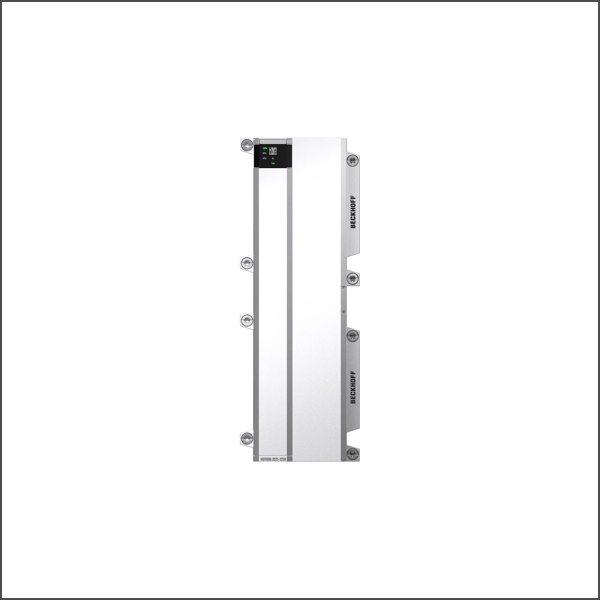

capacitor module MD9000-2025-2250
SKU: MD9000-2025-2250
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The MD9000-2025-2250 capacitor module expands the DC link capacity and is suitable for supporting the DC link.
Buy currently uses Select Automation shop pricing and checkout.
Product category: drive modules
Category/version: capacitor
Supply voltage from backplane: 600 V DC
Capacity: 2025 µF
DC link voltage: max. 848 V DC
Baseplate interface: data and power connector
Diagnostics: yes
Distributed clocks: yes
Hot swap: yes
TwinCAT version: TwinCAT 3
Approvals/markings: CE, cULus, EAC
Dimensions (W x H x D): 70 mm x 240 mm x 152 mm
Number of rows: 2
Number of slots: 2
Material: zinc and aluminium die-cast
Cooling: convection
Operating/storage temperature: 0…+50 °C/-25…+85 °C
Protect. rating/installation pos.: IP65/67/variable
