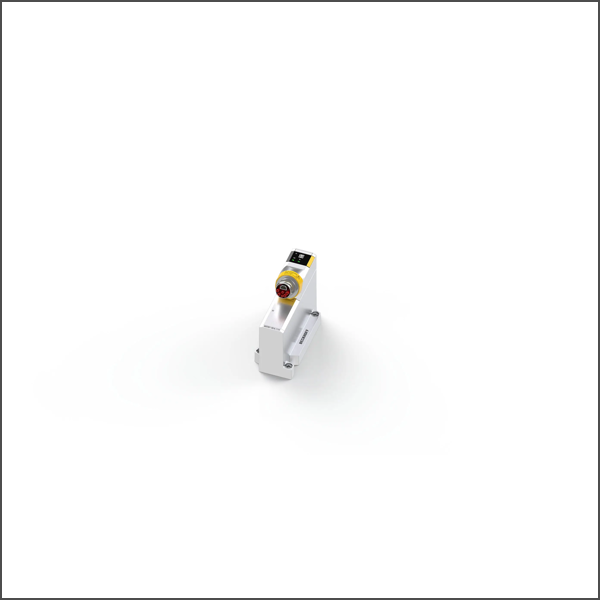

DC motor motion interface MO7342-0000-1122

Product category: I/O modules Category/version: compact drive technology Type: DC motor Feedback: incremental encoder Channels: 2 Connection method: M12 Output current: 3.5 A per channel Supply voltage from backplane: 24/48 V DC Encoder connection: 1 x A, B, C: 24 V DC, single-ended connection Encoder operating voltage: 24 V DC Limit frequency: 400,000 increments/s (with 4-fold evaluation), corresponding to 100 kHz DC link voltage: 48 V DC Baseplate interface: data connector Diagnostics: yes, status and live data via app Distributed clocks: yes Hot swap: yes TwinCAT version: TwinCAT 3 Weight: approx. 400 g Approvals/markings: CE, (UL in preparation) Dimensions (W x H x D): 30 mm × 110 mm × 72 mm Number of rows: 1 Number of slots: 1 Material: zinc and aluminum die-cast Cooling: convection Operating/storage temperature: 0…+50 °C/-25…+85 °C Protect. rating/installation pos.: IP65/67/variable
