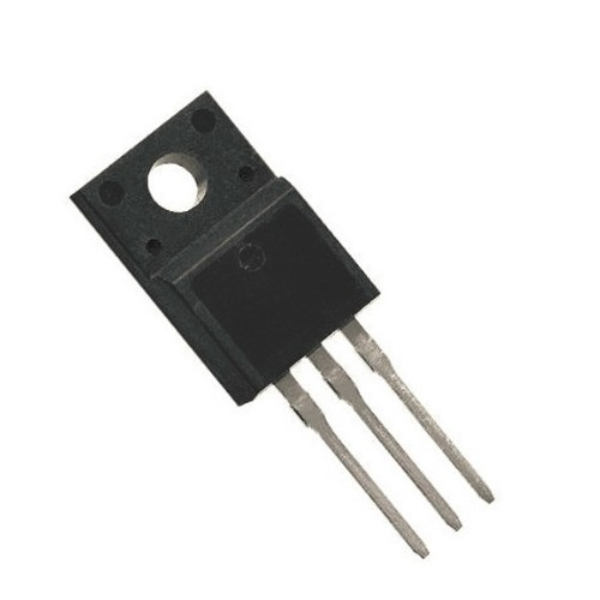

FDP24N40 N-Channel MOSFET 3-Pin TO-220 24A 400V
SKU: MOS-0075-F13
Sold by Select Automation
Final price R 61.40
R 53.39 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
High-voltage semiconductor MOSFET.
It has the lowest on-state resistance among planar MOSFETs and offers excellent switching performance and avalanche energy strength.
Furthermore, the inbuilt gate-source ESD diode enables the MOSFET to sustain HBM surge stress of more than 2000 V. MOSFETs are appropriate for switching power converter applications such as power factor correction (PFC), flat panel displays (FPD), TV power, ATX (Advanced Technology Extended), and electronic light ballasts.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Channel Type: N-Channel.
Maximum Continuous Drain Current: 24A.
Maximum Drain Source Voltage: 400V.
Package Type: TO-220.
Mounting Type: Through Hole.
Pin Count: 3.
Maximum Drain Source Resistance: 175m Ω.
Maximum Power Dissipation: 227W.
Minimum Gate Threshold Voltage: 3V.
Maximum Operating Temperature: +150°C.
Minimum Operating Temperature: -55°C.
