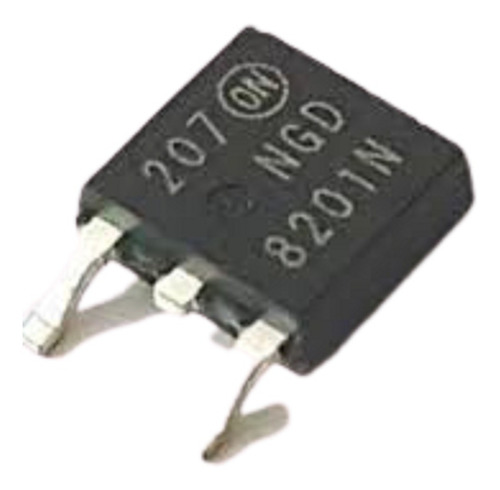

NGD8201NG N-Channel IGBT MOSFET 400V 20A 369C
SKU: MOS-0084-F13
Sold by Select Automation
Final price R 40.25
R 35.00 excl. VAT
Availability: In Stock (7 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
This Logic Level Insulated Gate Bipolar Transistor (IGBT) has monolithic circuitry with ESD and overvoltage clamping protection for inductive coil driver applications.
Ignition, direct fuel injection, and other applications requiring high voltage and current switching are among the primary uses.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Collector-emitter voltage: 440V.
Collector-gate voltage: 440V.
Gate-emitter voltage: 15V.
Collector continuous current: 20A DC.
Collector current Pulsed TC=25°C: 50A DC.
Continuous gate current: 1.0mA.
Transient gate current: 20mA.
Power dissipation TC=25°C: 125W.
Operating and storage temperature: -55 to +175°C.
